Product Range

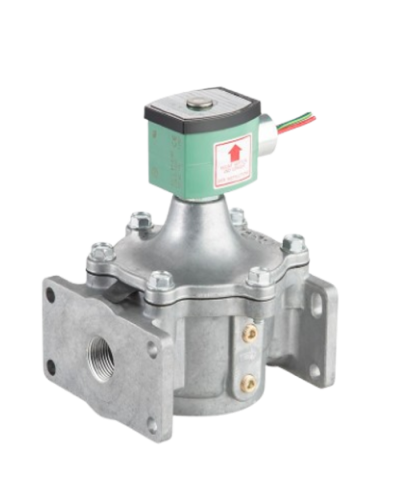

Gas Shut Off Solenoid Valves
Type ASCO Series 214
The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. Optional flange allows for double-solenoid & solenoid-motorized valve construction to allow for modularity and ease of mounting.
- Low pressure drop and extremely high flow capacity make the valve ideal in low gas supply pressure applications and locations
- Fully certified by UL, CSA, and FM as a safety shut-off valve
- Proof of closure switch & visual indication switch meets agency/code requirements for an electrical interlock of valve closed position
- 1/8-inch NPT pipe taps with plugs provide easier routine testing

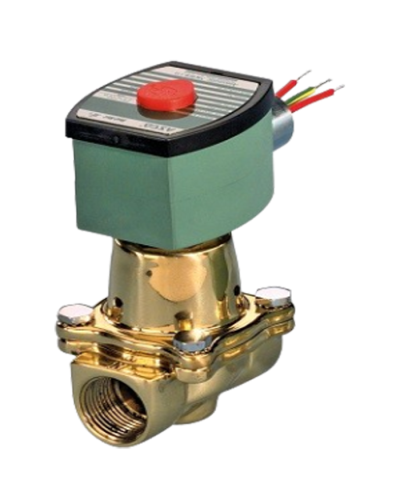

Steam Solenoid Valve
Type ASCO 222
The ASCO Series 222, also known as 8222, steam solenoid valves are designed for high-temperature applications found in commercial laundry and kitchen equipment, molding, steam atomization sterilizer, and autoclave applications. The pilot-operated valves come with a Y-body floating piston or diaphragm design for durability and reliability.
- Designed for high-temperature fluids
- Steam service up to 125 psi differential and 355 F
- Available in 1/4-inch to 1-inch sizes

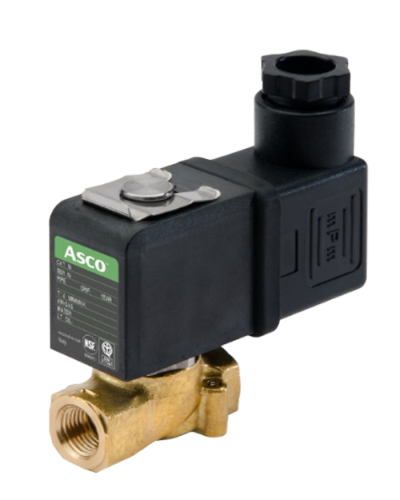

2-Way Compact Solenoid Valve
Type ASCO 256
The ASCO Series 256, also known as 8256, 2-way compact solenoid valves are designed for shutoff control for a wide range of Industrial and commercial industry applications. The valves have a range of third-party approvals for applications ranging from fuel oil and gas burners to potable water and food service applications
- Quick connect options for fast installation
- AC/DC interchangeability of the solenoid and rotatable coils.
- Subminiature NSF 61 Annex G and 169 versions with 316L stainless-steel, lead-free brass, and composite (PPS) constructions are available for potable water and food service
