Technical Specifications

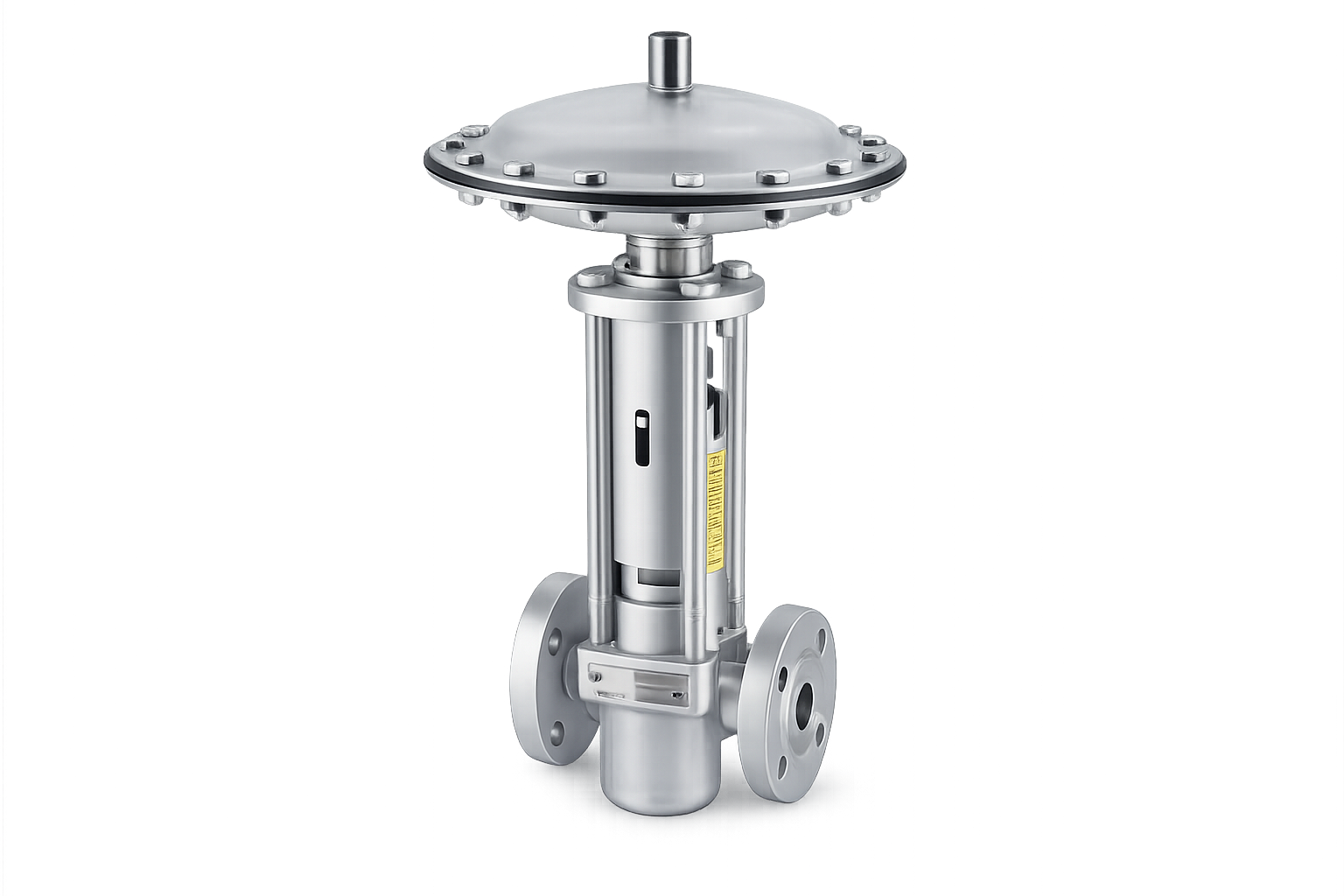

Technical details and operational capacity for the Gestra PA 46 model.
| Parameter | Specification Details |
|---|---|
| Manufacturer / Brand | Gestra (Germany) |
| Type / Model | PA 46 (Manual / Intermittent Blowdown Valve) |
| Nominal Size (DN) | DN 25 (1 Inch) |
| Nominal Pressure (PN) | PN 40 (Max. Operating Pressure up to 40 Bar) |
| End Connection | Flanged (Complies with DIN/EN standards) |
| Body Material | Forged Steel / Cast Steel (High-temperature resistant) |
| Main Application | Steam Boilers, periodic removal of boiler sludge/scale. |
Note: Make sure to check the flange face-to-face dimensions prior to piping installation to ensure compatibility with standard Gestra specifications.
