Product Specifications

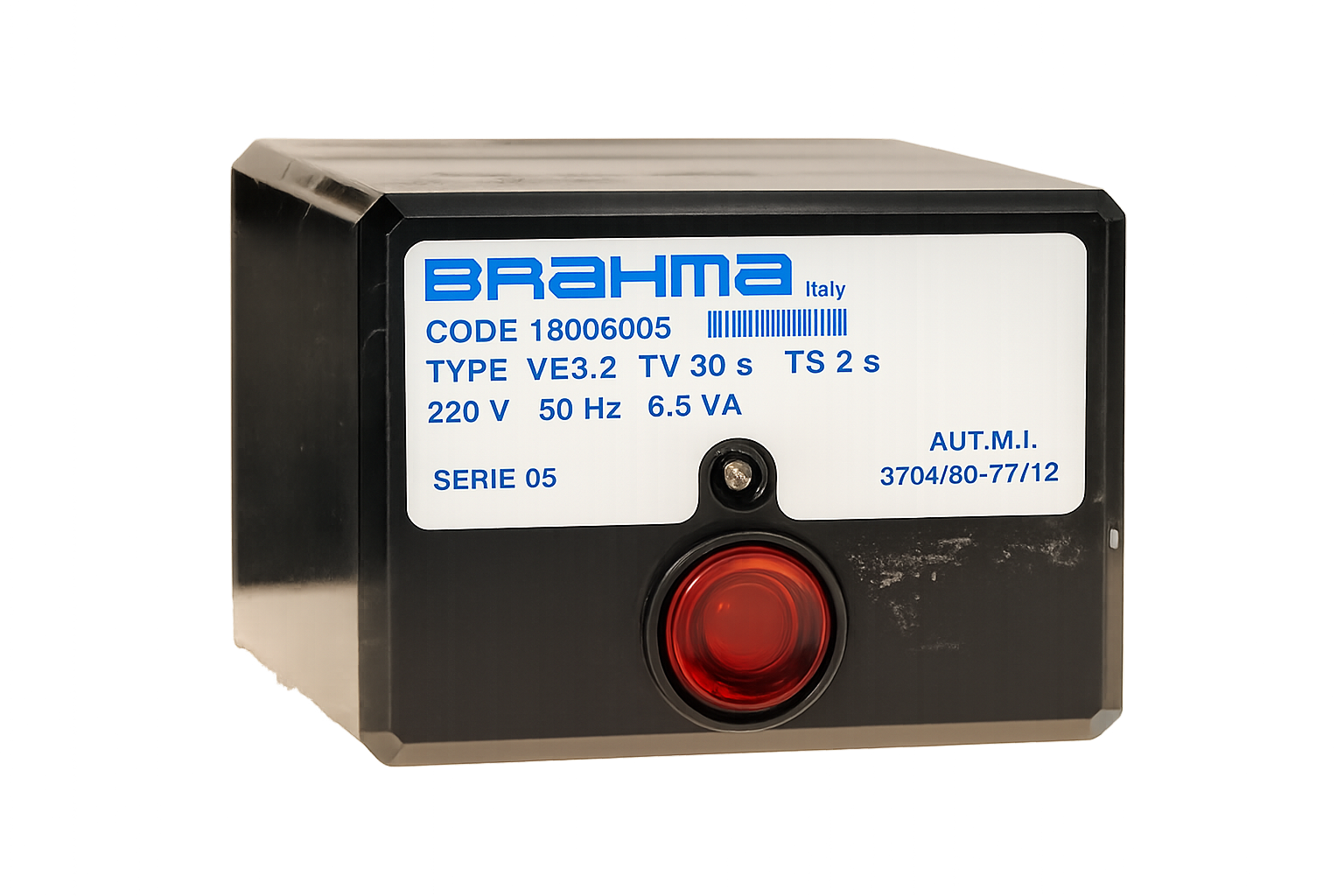

| Product Model | Brahma VE 3.2-230VAC |
|---|---|
| Control Unit Type | Microprocessor Automatic Burner Control & Flame Safeguard |
| Supply Voltage | 230 VAC (+10% / -15%), 50–60 Hz |
| Power Consumption | Approx. 3 VA |
| Flame Detection Method | Ionization Probe / UV Phototube Detection |
| Safety Response Time | < 1 second (Flame failure reaction) |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Enclosure Protection | IP40 (Standard Base Socket Mount) |
| Applications | Gas boilers, industrial forced draught burners, warm air heaters, process ovens, and dual-fuel heating systems. |
| Key Features | Automatic ignition sequence management, rapid flame loss protection, integrated status LED indicators, quick plug-in terminal base installation, high electromagnetic immunity, and robust flame detection circuitry. |
