DUNGS

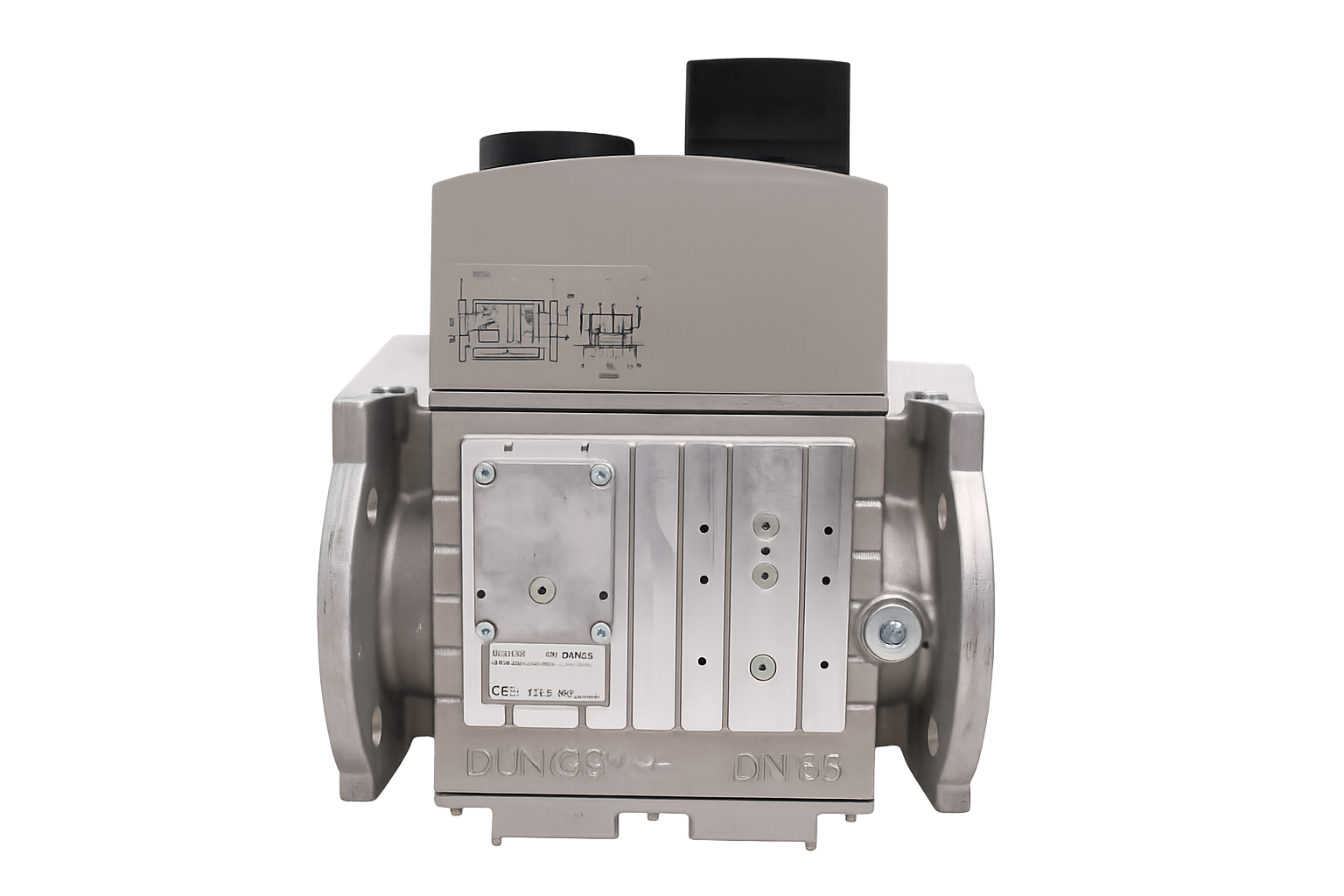

Double Solenoid Valve - DMV 5065/12
DUNGS Double Solenoid Valve DMV 5065/12 is a compact dual safety automatic shut-off valve designed for industrial burners and gas equipment. Combining two solenoid valves into a single compact housing, it delivers maximum safety, fast closing action, and energy-efficient performance for modern thermal processing systems.
Engineered for high flow rates and reliable operational safety, the DMV 5065/12 supports automatic shut-off operations across various gas train configurations. Its rugged die-cast aluminum body and precision internal components ensure exceptional durability in demanding industrial environments.
Technical Specifications
Standard configuration and operational parameters for DUNGS Double Solenoid Valve DMV 5065/12.
| Parameter | Standard Configuration |
|---|---|
| Product Brand & Model | DUNGS - Double Solenoid Valve DMV 5065/12 |
| Valve Function | Dual Safety Automatic Shut-Off Valve (Fast Opening / Fast Closing) |
| Operating Type | Direct Acting Solenoid Valve (Normally Closed) |
| Applicable Medium | Natural Gas, Town Gas, LPG, Air, and Non-Aggressive Gases |
| Maximum Operating Pressure | 500 mbar (50 kPa / 7 PSI) |
| Nominal Diameter / Connection | DN 65 Flanged Connection (PN 16 according to EN 1092-1) |
| Voltage / Frequency | 230 VAC (+10% -15%), 50-60 Hz (Other voltages available upon request) |
| Closing / Opening Time | Closing time < 1 second / Opening time < 1 second |
| Body & Seal Materials | Die-Cast Aluminum Body, NBR Seals, Steel/Brass Internal Parts |
| Ambient / Medium Temperature | -15°C to +60°C (+5°F to +140°F) |
| Degree of Protection | IP 54 (IEC 529) |
| Standard & Approvals | CE Approved / EN 161 / UL Recognized / CSA Certified |
