Product Specifications

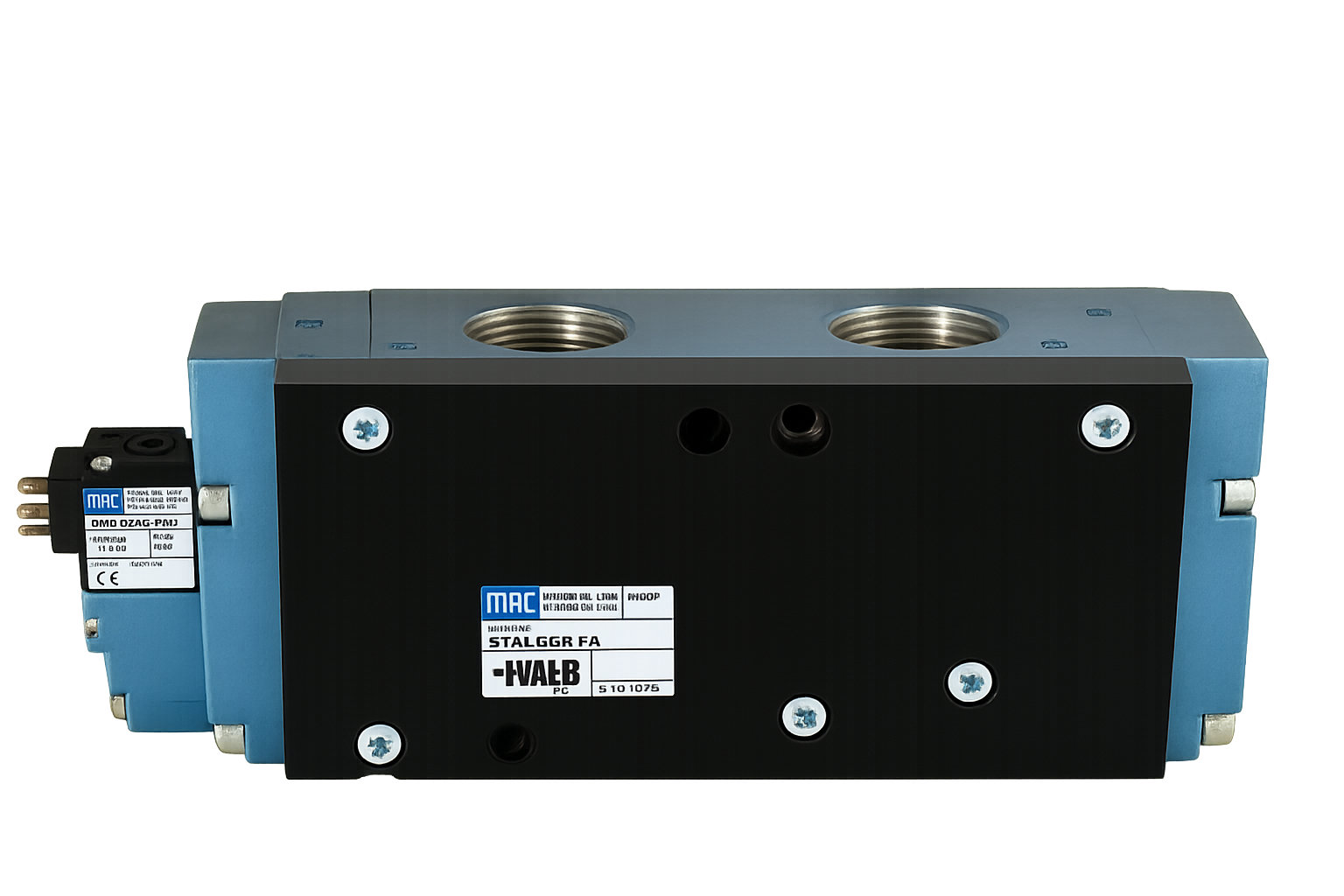

| Product Series | Solenoid Valve MAC 64 Series |
|---|---|
| Function Type | 3-Way Spool Valve (Pilot Operated) |
| Operating Media | Compressed Air,Inert Gases |
| Pressure Range | Internal Pilot:20 to 120 PSI / External Pilot:Vacuum to 120 PSI |
| Temperature Range | -18°C to 50°C (0°F to 120°F) |
| Flow Rate (Cv) | Up to 1.5 Cv (Depending on body type and port size) |
| Coil Voltages | 12V DC,24V DC,120V AC,240V AC (Optional) |
| Key Features | Balanced poppet pilot design,low minimum operating pressure,high shifting forces,non-sticking execution. |
