Technical Specifications

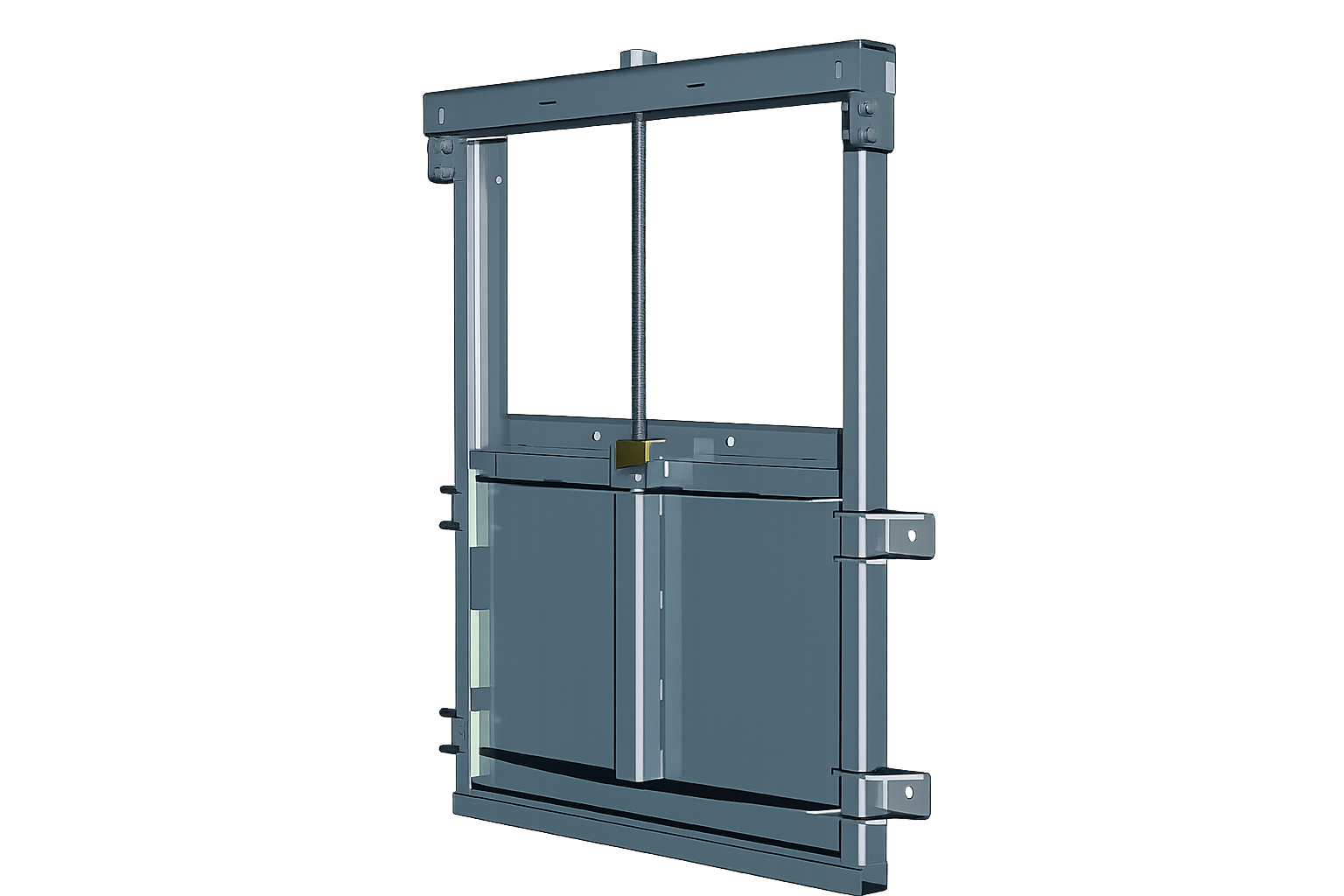

Standard configuration and operational parameters for VAG ERI®plus Penstock.
| Parameter | Standard Configuration |
|---|---|
| Product Brand & Model | VAG - ERI®plus Penstock |
| Function | Wall-mounted Slide Gate for Fluid Isolation and Flow Control |
| Size Range (Nominal Width) | 150 x 150 mm up to 2000 x 2000 mm (Custom sizes available upon request) |
| Applicable Medium | Raw water, Municipal Wastewater, Industrial Effluent, and Stormwater |
| Pressure Rating (Sealing Head) | Up to 10 mWC (meters water column) on-seat / off-seat (higher ratings on request) |
| Mounting / Connection Type | Wall mounting with anchor bolts / Embedded in concrete / Flange connection |
| Actuation Options | Manual Handwheel, Bevel Gearbox, Electric Actuator, or Hydraulic Cylinder |
| Sealing Design | 4-side tight sealing with replaceable EPDM or NBR lip seals |
| Frame & Door Material | Stainless Steel 1.4301 (AISI 304) or 1.4404 (AISI 316L) |
| Spindle / Stem Material | Stainless Steel 1.4404 (AISI 316L), Rising or Non-Rising Stem design |
| Leakage Rate | Class 5 according to DIN 19569-4 / EN 12266 (Tight sealing performance) |
| Standards & Approvals | DIN 19569-4 / EN 12266 / CE Certified |
