Technical Specifications

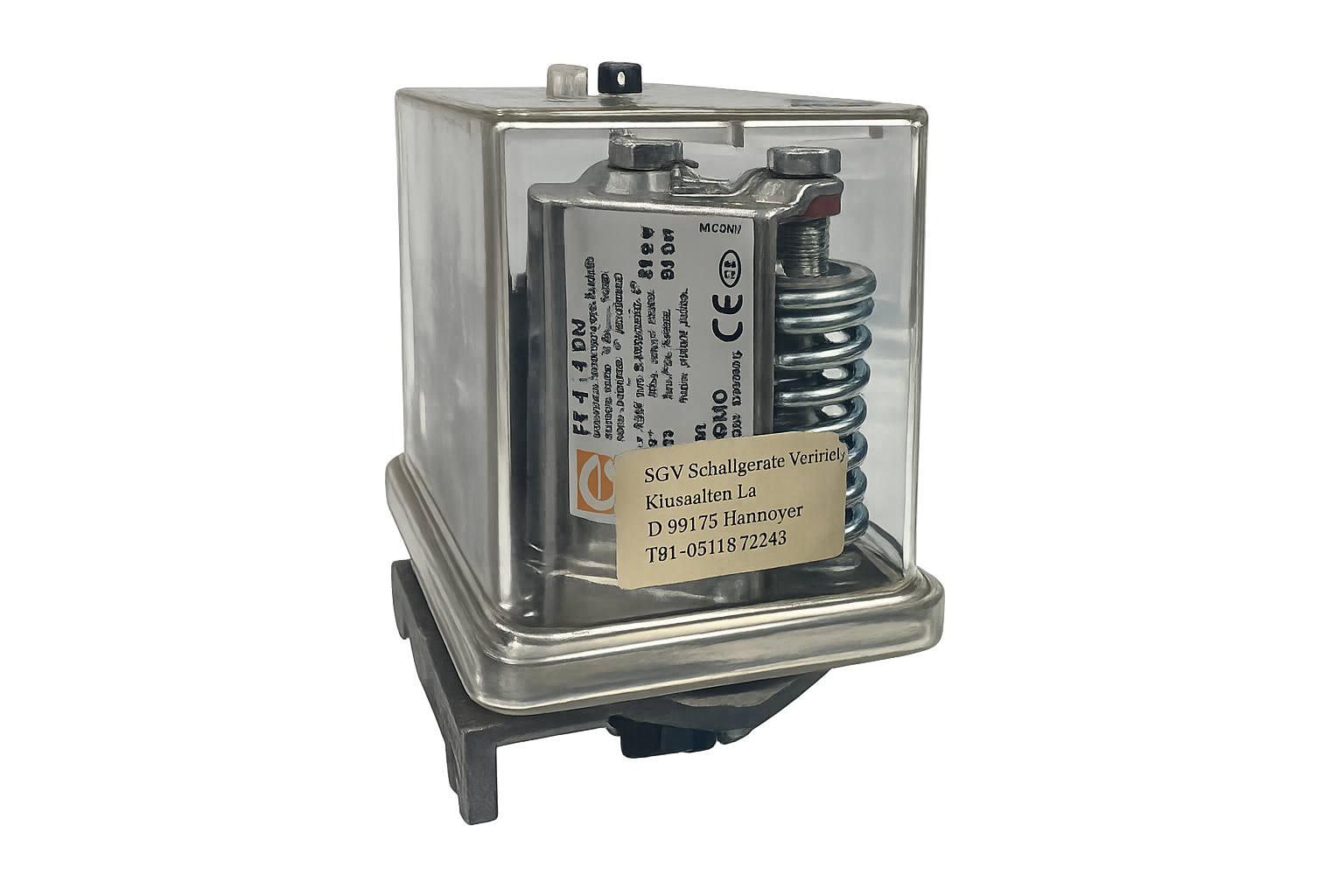

Standard mechanical configuration and operational parameters for the FANAL / TIVAL FF 4-4 DAH.
| Parameter | Standard Configuration |
|---|---|
| Product Brand & Model | FANAL / TIVAL FF 4-4 DAH |
| Device Type | Industrial Mechanical Pressure Switch |
| Applicable Medium | Water, Air, Oil, and Non-Aggressive Gases |
| Pressure Setting Range | 0.22 bar – 4.0 bar |
| Switching Function | SPDT / Changeover microswitch contact mechanism |
| Process Connection | Threaded Connection G 3/8" Female (Brass / Stainless options) |
| Sensor Material | NBR Diaphragm / Perbunan pressure element |
| Maximum Medium Temperature | Up to 70°C (depending on medium type) |
| Housing Protection Rating | IP 54 (Plastic transparent housing, dust and splash protected) |
