Product Specifications

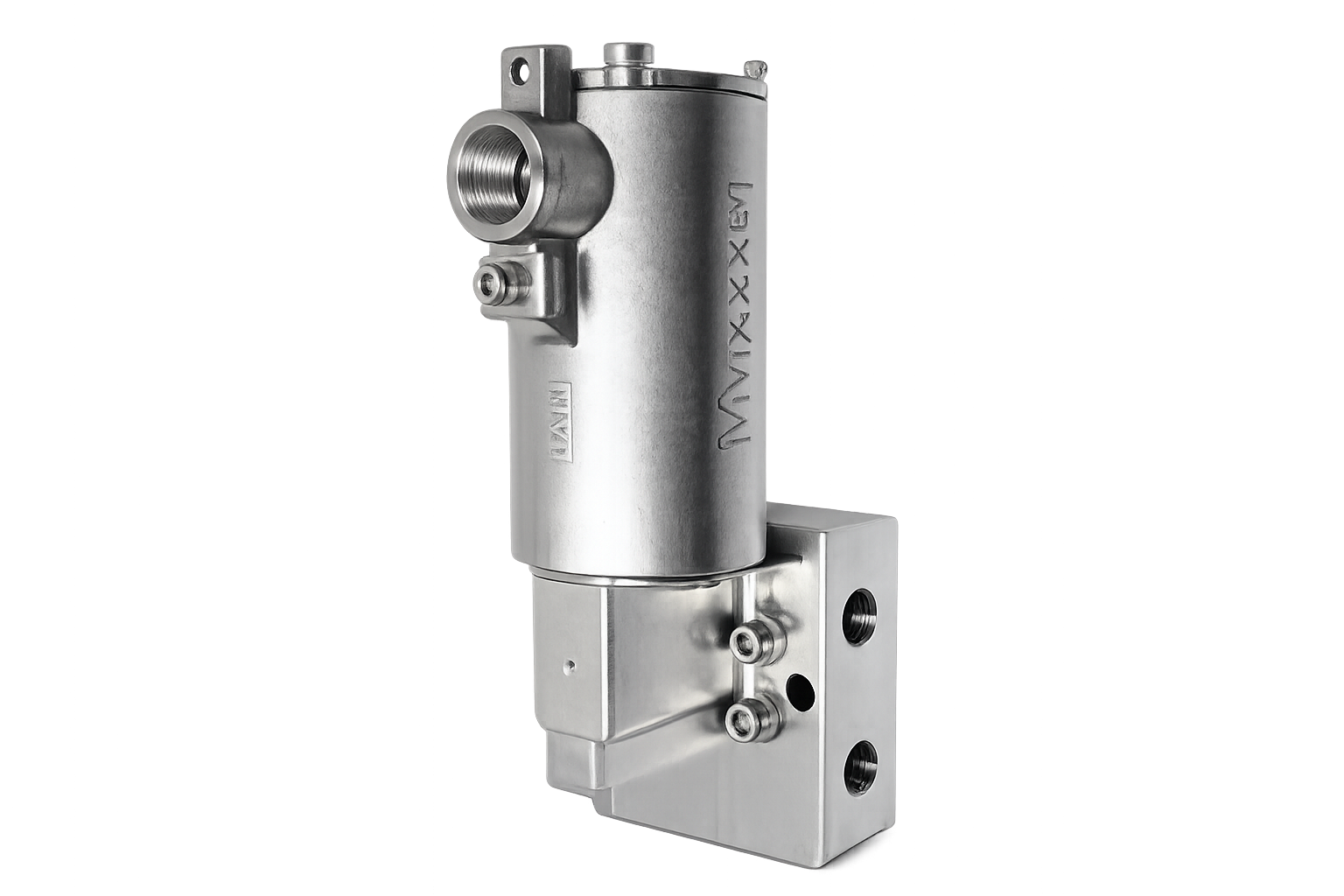

| Product Series | Maxseal ICO3S Series |
|---|---|
| Valve Type | Compact Heavy-Duty Direct Acting Solenoid Valve |
| Flow Configuration | 2/2 or 3/2 Way (Direct Acting / Manual & Auto Reset Options) |
| Body Material | 316L Stainless Steel (Corrosion Resistant) |
| Port Connection Size | 1/4", 3/8",1/2" NPT or BSPP |
| Operating Pressure | 0 to 12 bar (High-pressure options available up to 200 bar) |
| Operating Temperature | -40°C to +90°C (-40°F to +194°F) / Low temp options available down to -55°C |
| Certification & Ratings | ATEX / IECEx Explosion-Proof (Ex d / Ex ia), IP66 / IP67 / NEMA 4X, SIL 3 Capable |
| Key Features | Rugged 316L stainless steel construction, SIL 3 safety integrity level compliance, compact design with high flow efficiency, low power consumption coil options, exceptional resistance to harsh marine and industrial environments. |
