Product Specifications

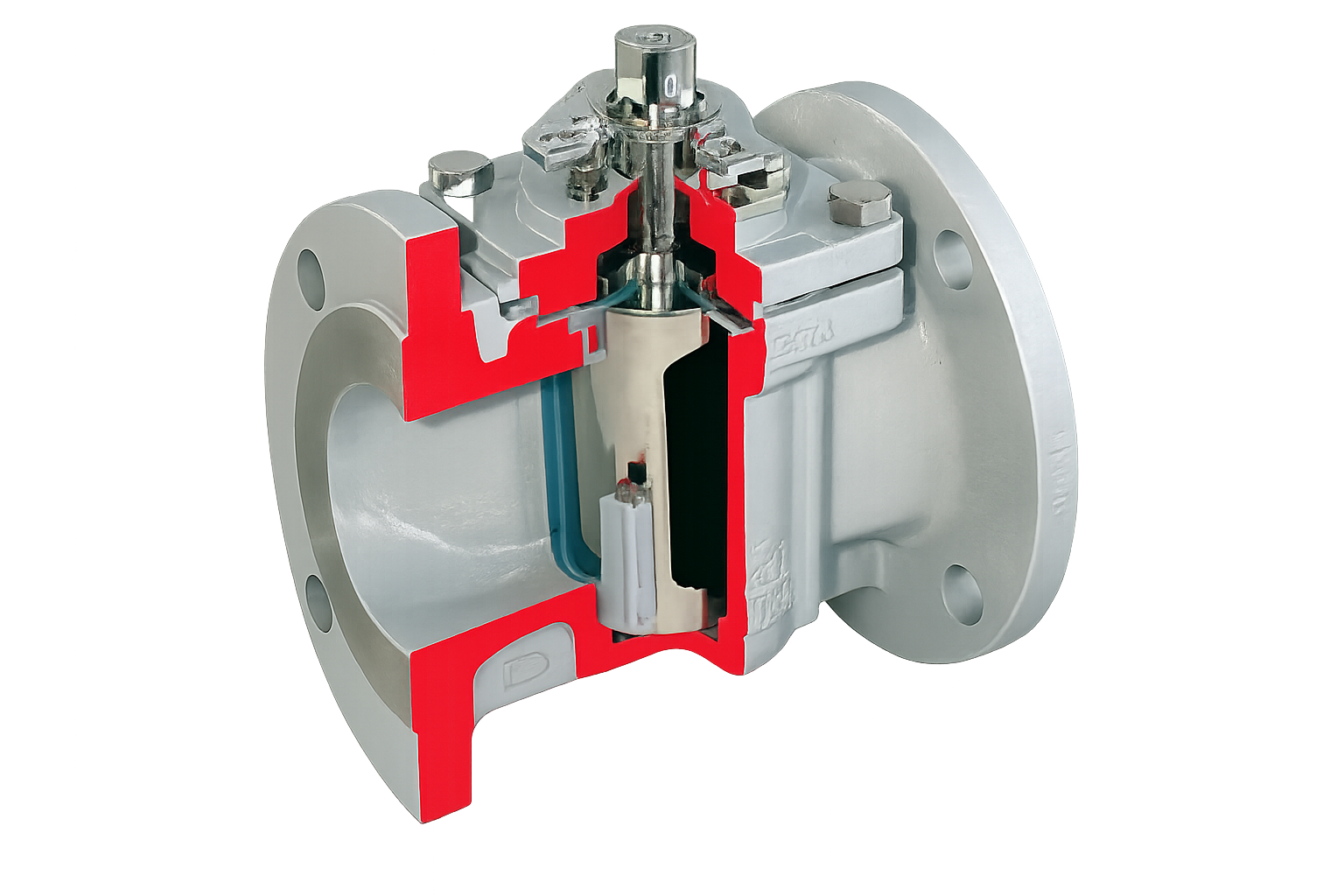

| Brand / Series | Mach 1 Series - Non-Lubricated Plug Valve |
|---|---|
| Size & Connection | 1/2" to 12" (DN15 - DN300),Flanged End RF / RTJ ASME Class 150 / 300 / 600 |
| Body & Bonnet Material | Carbon Steel (WCB),Stainless Steel (CF8M),Ductile Iron,Special Alloys (Inconel,Hastelloy) |
| Trim & Sleeve Material | PTFE / PFA / RTFE Fully Encapsulated Sleeve,Stainless Steel Plug with Hard Chrome / ENP Coating |
| Working Pressure | ASME Class 150 - 600 (Up to 1480 psi depending on temperature/material rating) |
| Temperature Rating | -20°F to 400°F (-29°C to 204°C) |
| Operation Type | Manual Wrench / Gear Operator,Pneumatic / Electric Actuation Ready |
| Sealing Technology | 360° Fully Retained PTFE Sleeve,In-line Adjustable Top Seal,Bi-Directional Shutoff |
| Design Standards | API 599,API 6D,ASME B16.34,Fire Safe to API 607 / ISO 10497 |
| Applications | Chemical Processing,Petrochemical,Slurry Services,Refining,Gas Distribution |
| Key Features | Zero Maintenance Lubrication,Non-Galling Design,Low Operating Torque,Bubble-Tight Sealing |
