Product Specifications

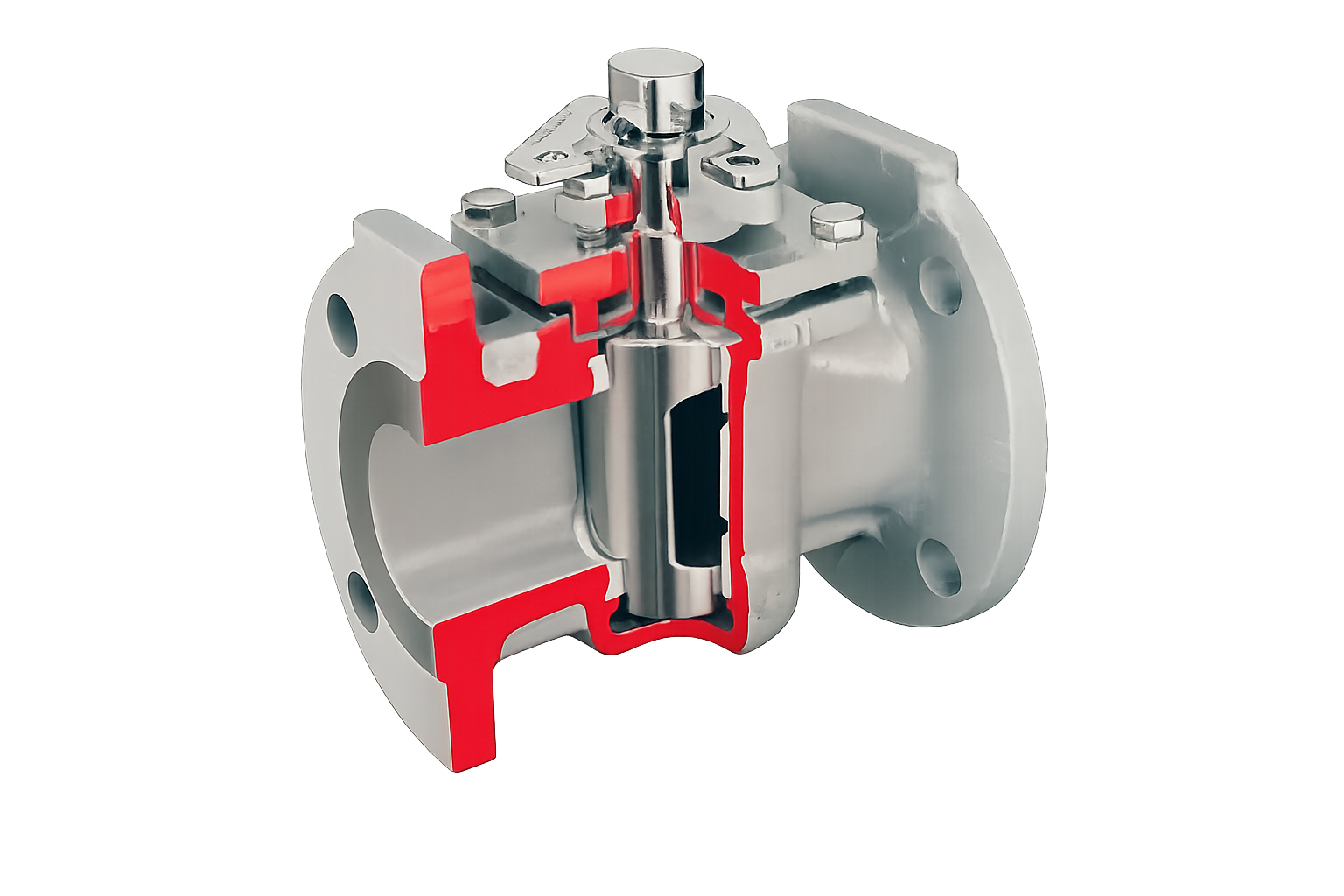

| Brand / Series | G4 Series Non-Lubricated Sleeve-Lined Plug Valve |
|---|---|
| Size & Connection | 1/2" to 18" (DN15 - DN450),Flanged End RF / RTJ ASME Class 150 / 300 |
| Body & Bonnet Material | Ductile Iron,Carbon Steel (WCB),Stainless Steel (CF8/CF8M),Alloy 20,Hastelloy |
| Trim & Sleeve Specs | 316 SS / Duplex Plug,High-Density PTFE / PFA Sleeve Liner,Bi-Directional Bubble-Tight Sealing |
| Working Pressure | ASME Class 150 & 300 Ratings (up to 740 psi depending on material/temperature) |
| Temperature Rating | -20°F to 400°F (-29°C to 204°C) |
| Actuator Options | Manual Wrench / Lever,Worm Gear Operator,Pneumatic or Electric Actuation Ready |
| Design Standard | API 599,API 607 (Fire Safe),ASME B16.34,ISO 5211 Mounting Top Flange |
| Testing Standard | API 598 Pressure Testing & Inspection |
| Features | Zero Maintenance (No Lubrication Required),Self-Cleaning Plug Action,Low Operating Torque |
