Product Specifications

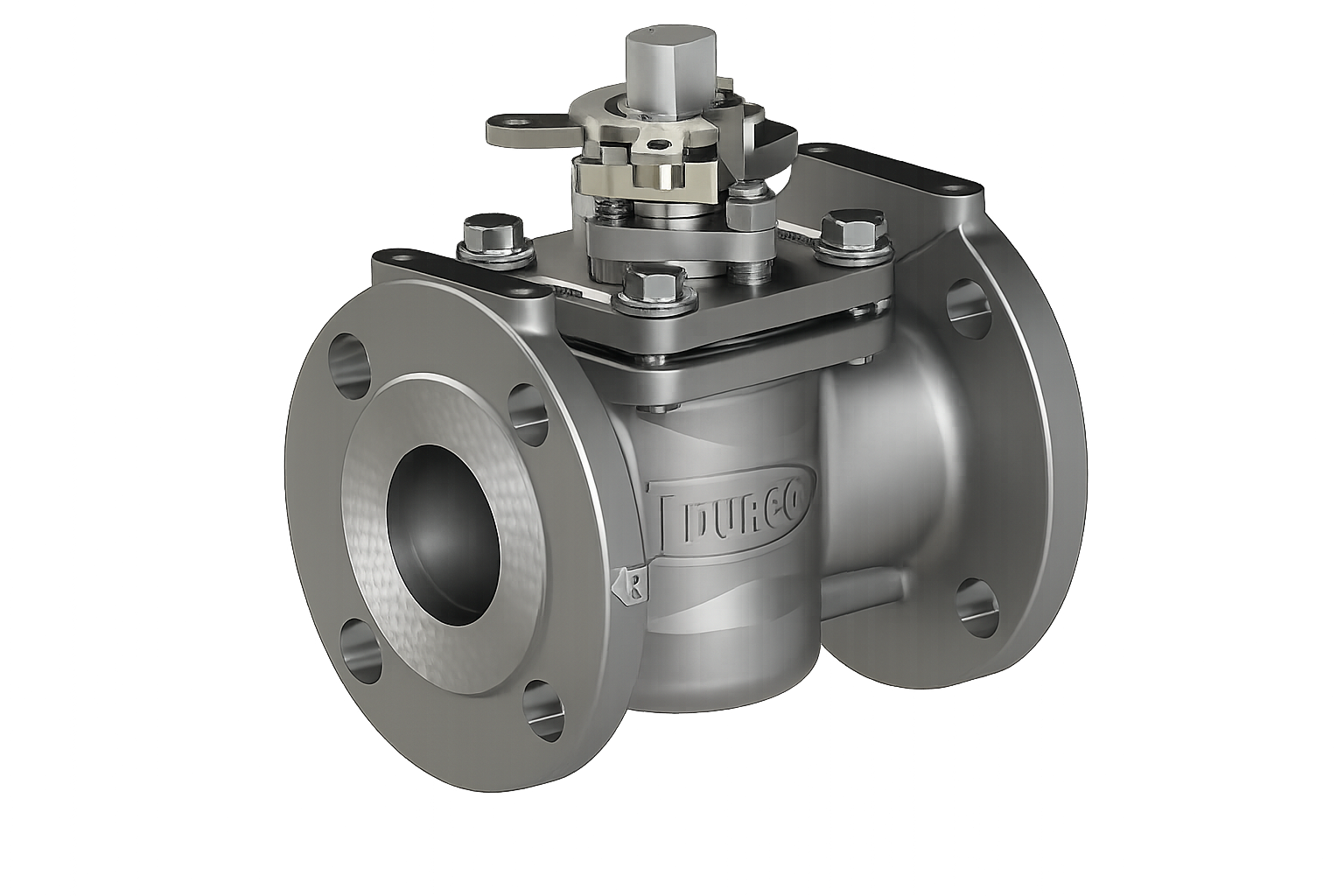

| Brand / Series | Flowserve Durco / G4XZ Sleeveline Series |
|---|---|
| Valve Type | Non-Lubricated Plug Valve |
| Size & Connection | ½ Inch to 14 Inch (DN 15 to DN 350),Flanged RF / RTJ ASME Class 150 / 300 / 600 |
| Body Material Options | Ductile Iron,Carbon Steel (WCB),Stainless Steel (CF8M),Alloy 20,Hastelloy,Monel |
| Sleeve & Trim Material | Fluorosleeve (PTFE / PFA Sleeve),High-Purity PTFE,CD4MCu / Stainless Steel Plug |
| Sealing Performance | 360° Positive Bi-Directional Bubble-Tight Sealing (Zero Leakage) |
| Pressure Rating | ASME Class 150,300,600 (Up to 1480 psi depending on body rating) |
| Temperature Rating | -20°F to 500°F (-29°C to 260°C) |
| Actuation Options | Manual Wrench,Manual Gear Operates,Pneumatic or Electric Actuation Ready (ISO Top Flange) |
| Design Standards | API 599,API 607 (Fire Safe),ASME B16.34,ISO 15848-1 Fugitive Emissions Certified |
| Key Features | Inline stem sealing adjustment,non-lubricated operation,anti-blowout stem design |
