General Specifications

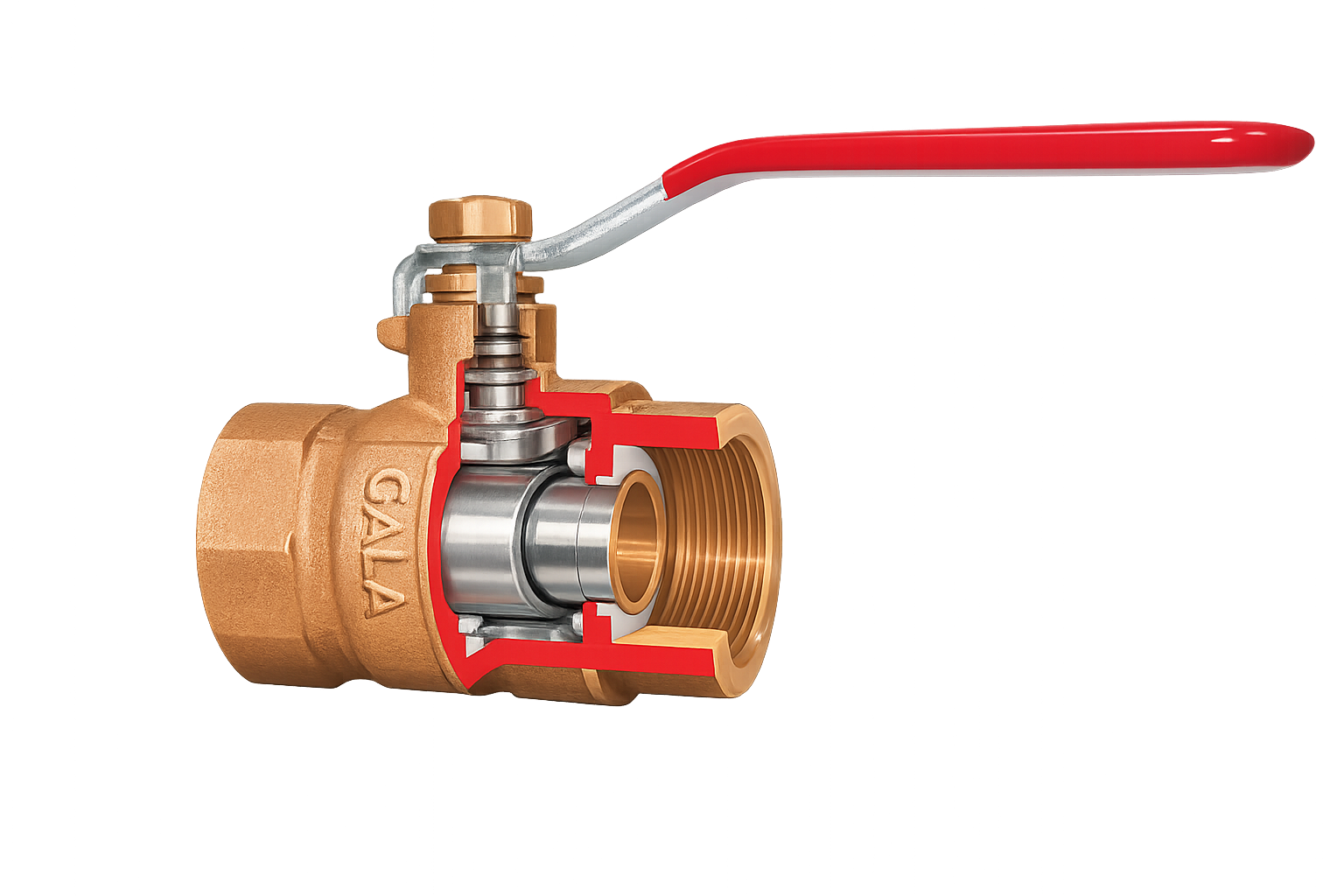

Key mechanical properties and operational performance standards for the Gala Bronze Ball Valve Type 600.
| Parameter | Standard Configuration |
|---|---|
| Valve Type | 2-Piece Threaded Bronze Ball Valve (Type 600) |
| Applicable Media | Water, Oil, Gas (WOG), Low Pressure Steam, and General Industrial Fluids |
| Body Material | Cast Bronze (ASTM B62 / C83600) |
| Ball & Stem Material | Chrome Plated Brass / Stainless Steel Ball, Blow-out Proof Stem |
| Connection Sizes & Style | DN 15 to DN 80 (1/2" to 3") — Threaded Ends (NPT / BSPT) |
| Seat & Seal Options | PTFE / Reinforced PTFE (RPTFE) |
| Pressure Rating | 600 WOG (Water, Oil, Gas) / 150 WSP (Saturated Steam) |
| Temperature Range | -20°C to +180°C (-4°F to +356°F) |
| Operation & Features | Lever Handle with Vinyl Grip, Adjustable Stem Packing, Blow-Out Proof Stem Design |
Technical Datasheet & Manual
Review full engineering details, dimensions, pressure ratings, and installation guidelines below.
