Jual Gas Regulator Dungs FRS 515 Medan

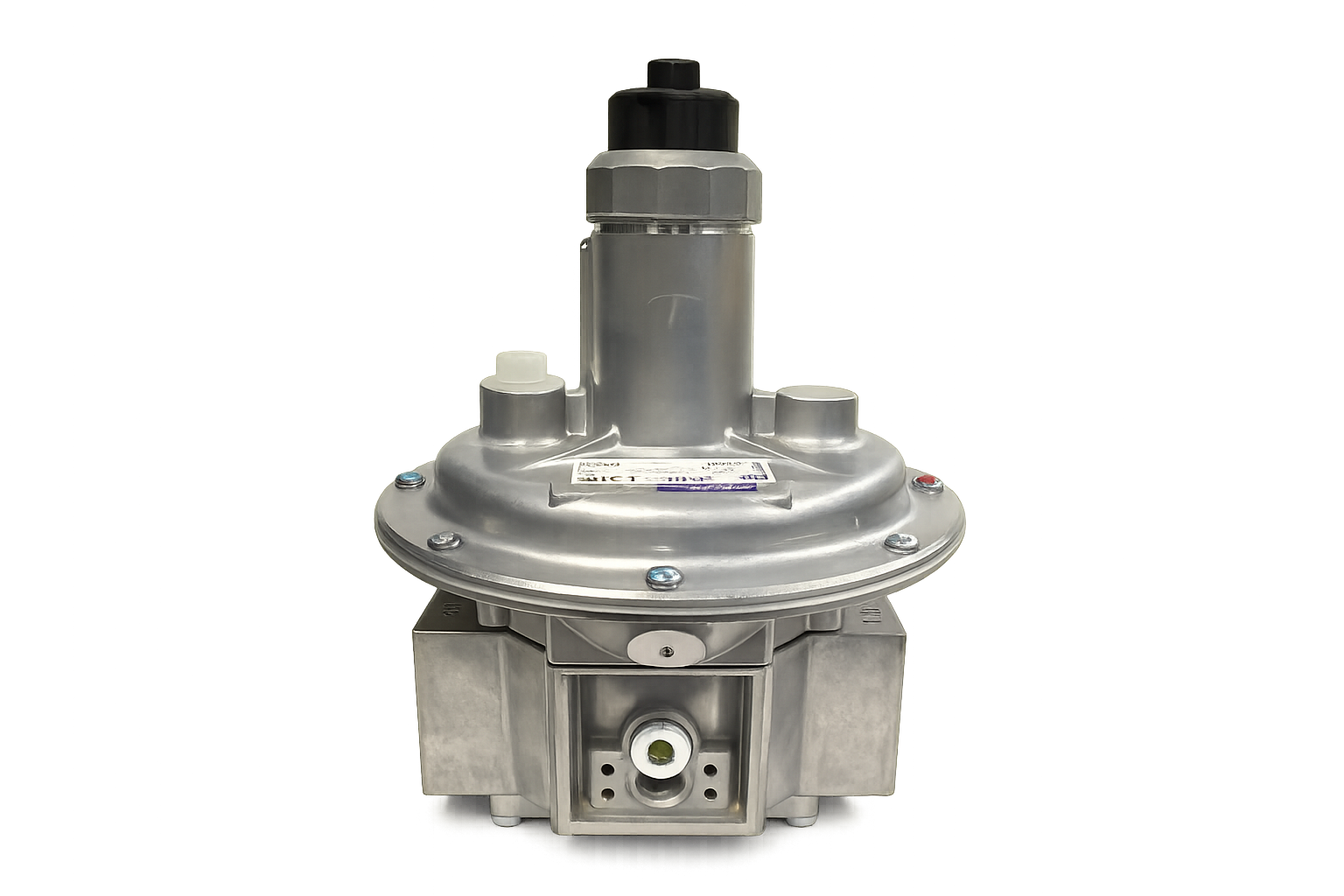

Gas Regulator Dungs FRS 515

The Dungs FRS 515 is a high-performance, spring-loaded gas pressure regulator featuring an adjustable setpoint spring and modular internal feedback. Engineered with a balancing diaphragm, it delivers highly stable, lock-up type pressure regulation even during fluctuating inlet pressures. Designed for commercial and industrial gas burning applications, this DN 40 (Flanged) regulator ensures maximum safety, high flow capacity, and reliable zero-shutoff control.

View Specifications

Product Specifications

Product Model	Dungs FRS 515 (Pressure Regulator)
Connection Size	DN 40 / Flange connection according to DIN EN 1092-1
Operating Media	Gases of families 1, 2, 3 (Natural gas, propane, butane) and other neutral gaseous media
Max. Inlet Pressure	Up to 500 mbar (50 kPa / 7 PSI)
Outlet Pressure Range	2.5 mbar to 200 mbar (Depending on adjustable setpoint spring selection)
Temperature Range	-15°C to 70°C (Ambient and gas temperature)
Materials	Housing: Aluminium, Steel / Seals & Diaphragms: NBR-based rubber
Key Features	Internal pulse feedback (optional external pulse connection), balancing diaphragm for precision, zero shut-off lock-up capability, and rugged industrial construction.

Gas Regulator Dungs FRS 515

Product Specifications
