Forged Steel Gate Valve
Design : API 602, ASME B16.34
A Forged Steel Gate Valve is a high-performance isolation valve designed for high-pressure and high-temperature applications. The valve body is manufactured through a forging process, resulting in a dense, uniform grain structure that provides superior mechanical strength, durability, and resistance to stress
Featured :
- Complies to API 602 and ASME B16.34 standards.
- A compact but extremely sturdy design for high pressure-temperature service.
- Available with bolted or welded bonnet.
- Meets API 624 and ISO 15848-1 fugitive emissions standards.
- Packing rings are pre-compressed in the packing chamber to ensure equal stress distribution, effectiveness of all rings and a high integrity seal.
Cryogenic Gate Valve
Design : API 602, ASME B16.34
A Forged Steel Gate Valve is a high-performance isolation valve designed for high-pressure and high-temperature applications. The valve body is manufactured through a forging process, resulting in a dense, uniform grain structure that provides superior mechanical strength, durability, and resistance to stress
Featured :
- Extended bonnets with sufficient gas column length, usually specified by customer, are supplied for all valves to keep stem packing at sufficient distance away from the cold fluid to remain functional.
- Solid CoCr alloy wedges on NPS 1⁄2 – 2 (DN 15–50) valves operate with no galling in cryogenic service.
- Cleaning: All cryogenic valves are thoroughly degreased and cleaned and pipe ends are sealed to prevent contamination.

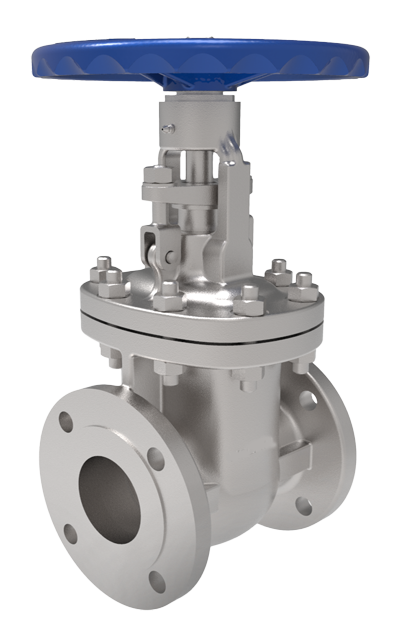

Cast Steel Gate Valve
Rising Stem & Non Rising Stem
A Forged Steel Gate Valve is a high-performance isolation valve designed for high-pressure and high-temperature applications. The valve body is manufactured through a forging process, resulting in a dense, uniform grain structure that provides superior mechanical strength, durability, and resistance to stress
Featured :
- Complies to API 602 and ASME B16.34 standards.
- A compact but extremely sturdy design for high pressure-temperature service.
- Available with bolted or welded bonnet.
- Meets API 624 and ISO 15848-1 fugitive emissions standards.
- Packing rings are pre-compressed in the packing chamber to ensure equal stress distribution, effectiveness of all rings and a high integrity seal.
