Jual Water Level Control Valve - 94 ITT-165200
Industrial Level Automation

Water Level Control Model 94 ITT-165200

The Water Level Control Valve Model 94 ITT-165200 is a heavy-duty, hydraulically operated diaphragm valve engineered for precision automatic level management in high-capacity reservoirs, water tanks, and industrial cooling towers. This float-controlled pilot system maintains optimum fluid levels with zero electrical reliance, preventing overflow and ensuring system equilibrium under fluctuating supply pressures.

Commonly utilized in municipal water supply networks, fire protection reservoirs, and aggressive industrial water treatment infrastructure. Key features include a robust ductile iron body, anti-corrosive internal trims, and a non-modulating pilot configuration that guarantees positive, tight shut-off once full capacity is achieved.

Request Quote via WhatsApp View Specifications

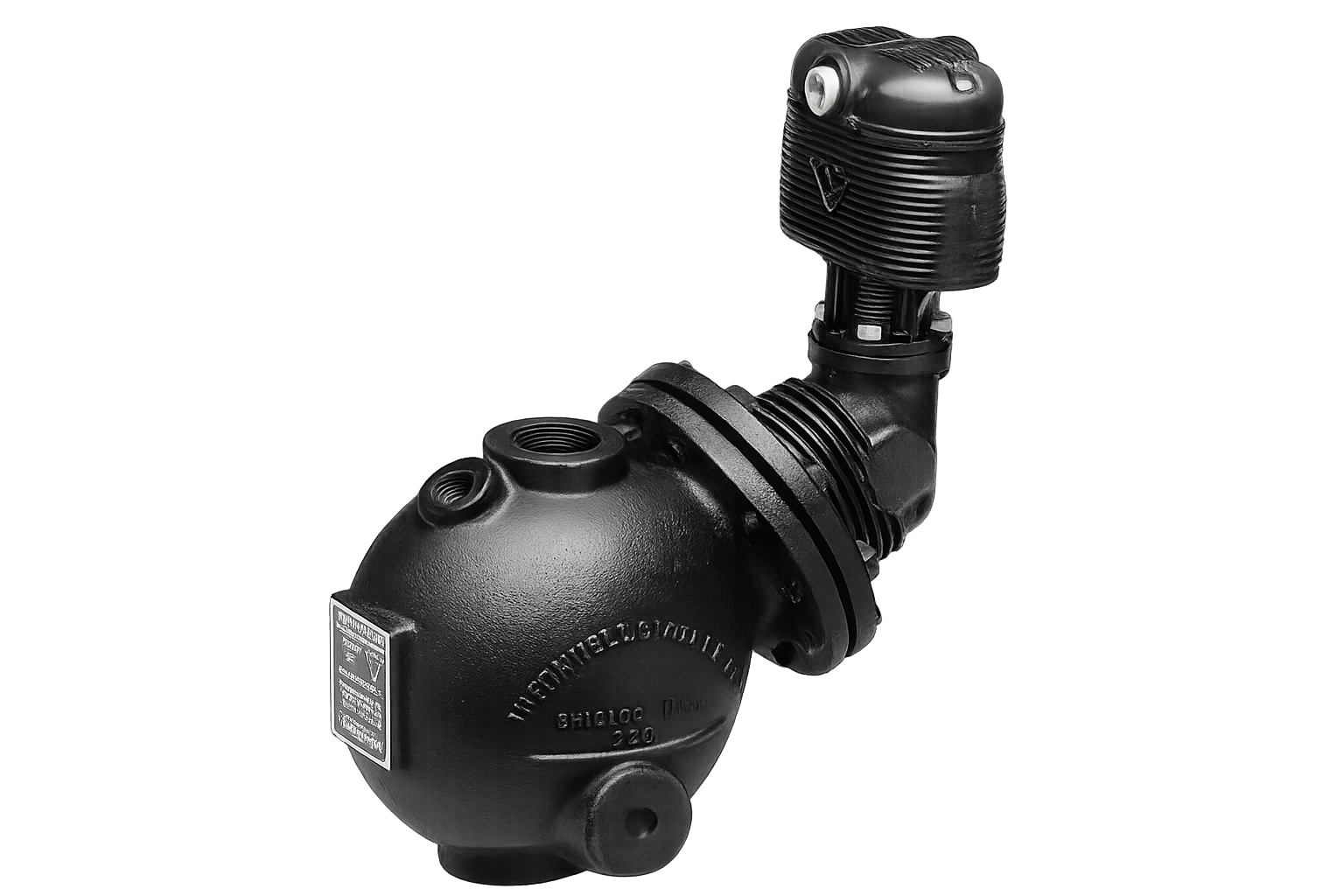

Water Level Control Valve 94 ITT-165200

Technical Specifications

Key mechanical properties and operational standards for Water Level Control Valve 94 ITT-165200.

Parameter Standard Configuration
Product Model / Part No. 94 ITT-165200 Series
Valve Function Float Controlled Water Level Control Valve (Non-Modulating)
Application Media Clean Water, Potable Water, Treated Industrial Water
Available Sizes 2" to 12" (DN50 - DN300) Standard Flanged
Pressure Rating Class 150 (Max 250 psi) / Class 300 (Max 400 psi) Options
Operating Temperature Water up to 80°C max (Standard EPDM Diaphragm)
Main Body Material Ductile Iron ASTM A536 / Optional Stainless Steel
Pilot Trim & Float Material Stainless Steel 316 and Heavy-Duty Brass Components
Seal / Elastomers NBR / EPDM synthetic rubber for high cycle durability
End Connections Flanged ANSI B16.42 (RF Flat Face or Raised Face)
