Meson Gate Valve DN50 PN16

Meson Gate Valve DN50 PN16 is a heavy-duty industrial isolation valve designed for reliable fluid shut-off in high-pressure piping networks, marine applications, and industrial processing plants. It delivers low flow resistance and excellent sealing integrity under nominal pressure up to 16 Bar.

Engineered according to international marine and industrial standards (DIN/EN), this 2-inch (DN50) gate valve features a robust cast iron/ductile iron body, flanged end connections, and durable trim materials suitable for fresh water, seawater, oil, and neutral liquid media.

Request Quote via WhatsApp View Specifications

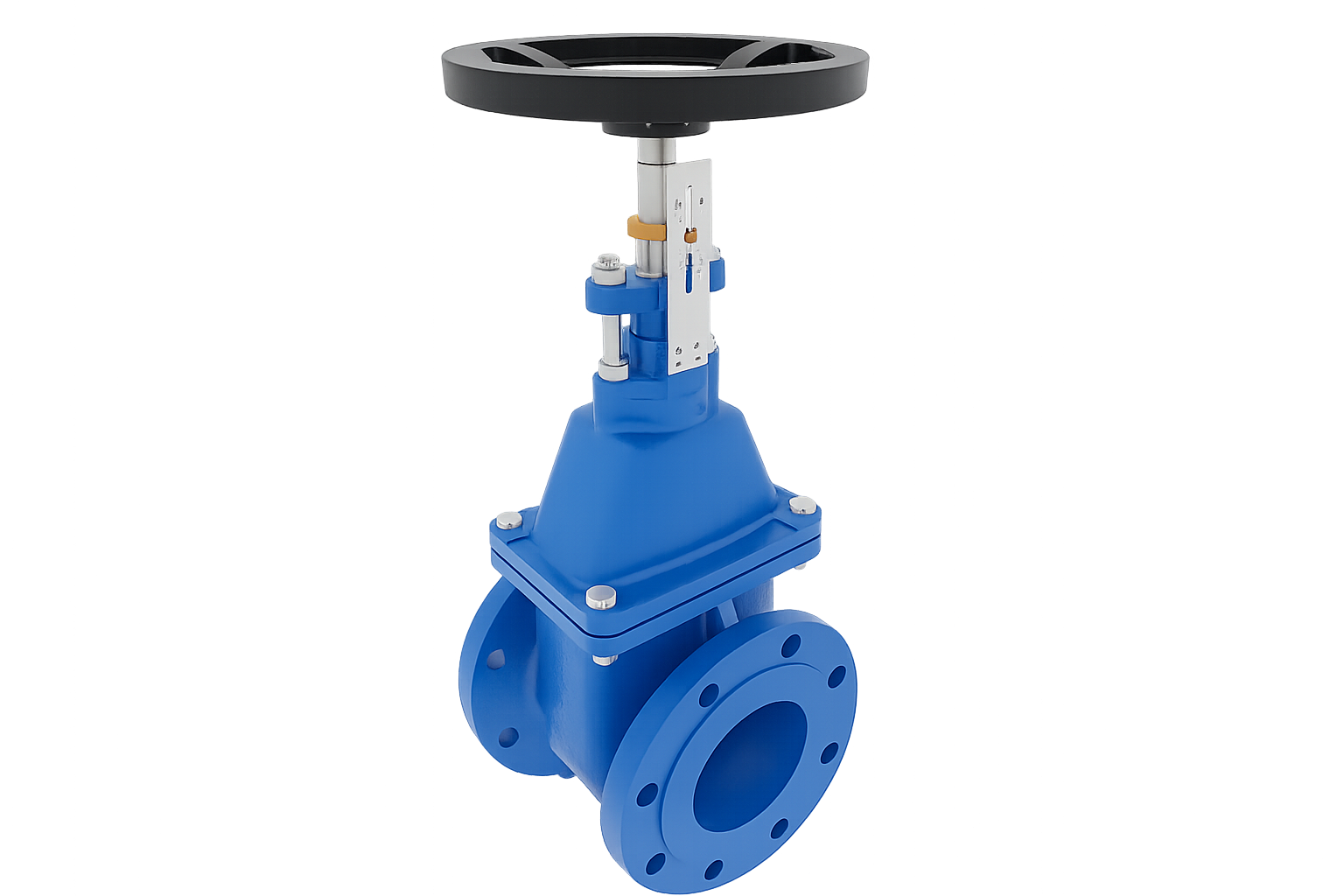

Meson Gate Valve DN50 PN16

Technical Specifications

Standard configuration and operational parameters for Meson Gate Valve DN50 PN16.

Parameter Standard Configuration
Product Brand & Model Meson - Gate Valve DN50 PN16
Nominal Diameter DN50 (2 Inches)
Nominal Pressure PN16 (16 Bar / 1.6 MPa)
Function Bi-directional Fluid Isolation / On-Off Flow Control
End Connection Standard Flanged EN 1092-2 / DIN PN16 Form B
Body & Bonnet Material Cast Iron (GG25 / EN-GJL-250) or Ductile Iron (GGG40 / EN-GJS-400-15)
Wedge & Seat Trim Material Bronze / Stainless Steel / EPDM Rubber-Coated Wedge
Stem Design Non-Rising Stem (NRS) / Stainless Steel Stem
Applicable Medium Fresh Water, Seawater, Waste Water, Oil, and Neutral Liquids
Operating Temperature -10°C to +120°C (depending on seat material)
Operation Type Manual Handwheel (Optional: Gear Box / Actuator)
Design & Testing Standards DIN 3352 / EN 1171 / Pressure Test per EN 12266-1
