Technical Specifications
Standard operational parameters and configurations for General Pressure Gauges.
| Parameter | Specification Details |
|---|---|

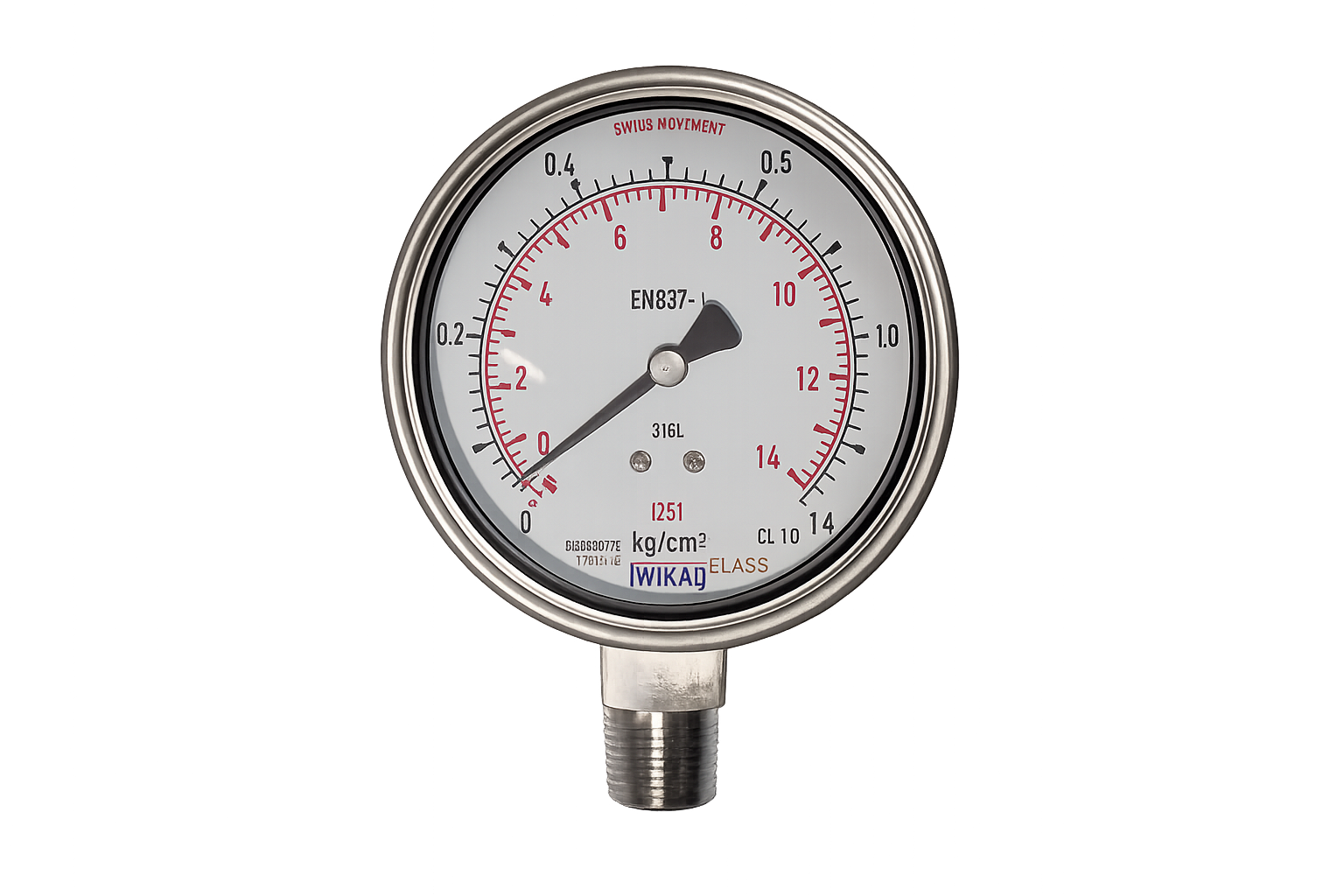

| Product Category | General Pressure Gauge |
| Dial Diameter Size | 2.5" (63 mm), 4" (100 mm), 6" (150 mm) |
| Pressure Ranges | -1 bar to 0 bar (Vacuum) up to 0 to 1000 bar (or PSI / kPa equivalent) |
| Accuracy Class | ±1.6% F.S. / ±1.0% F.S. (Full Scale) |
| Case Material | Stainless Steel AISI 304 / Black Painted Steel |
| Wetted Parts / Movement | Brass / Copper Alloy (Bourdon Tube & Socket) |
| Connection Size & Type | 1/4", 3/8", 1/2" NPT / BSPT / BSPP (Bottom Entry or Back Entry) |
| Window / Lens Material | Instrument Glass / Polycarbonate Lens |
| Operating Temperature | Ambient: -20°C to +60°C | Medium: Max. +60°C |
| Applicable Medium | Air, Water, Oil, Non-corrosive Gases, and General Liquids |
