Technical Specifications

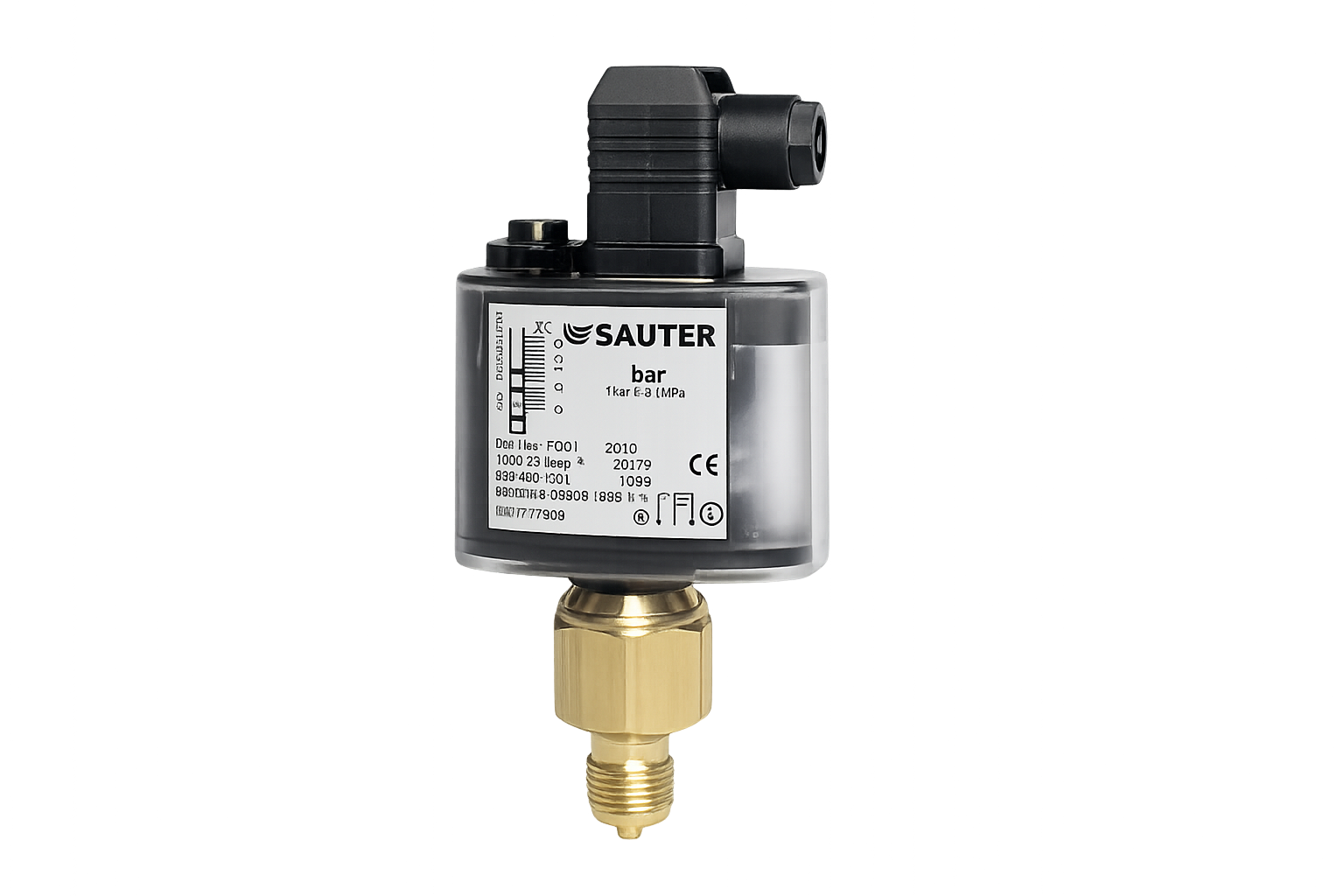

Standard mechanical configuration and operational parameters for the Sauter DFC 17 B 78 F 001.
| Parameter | Standard Configuration |
|---|---|
| Product Brand & Model | Sauter DFC 17 B 78 F 001 |
| Device Type | Heavy-Duty Mechanical Pressure Switch / Pressure Monitor |
| Applicable Medium | Non-Aggressive Liquids, Gases, Steam, and Air |
| Pressure Setting Range | Adjustable medium-to-high pressure ranges (DFC series standard) |
| Switching Function | Single Pole Double Throw (SPDT) / Microswitch contact mechanism |
| Process Connection | Threaded Connection G 1/2" Male (Brass / Stainless Steel) |
| Sensor Material | Stainless Steel Bellows / Durable Pressure Element |
| Maximum Medium Temperature | Up to 70°C - 110°C (depending on application media) |
| Housing Protection Rating | IP 54 / IP 65 (Robust weather and dust protection) |
