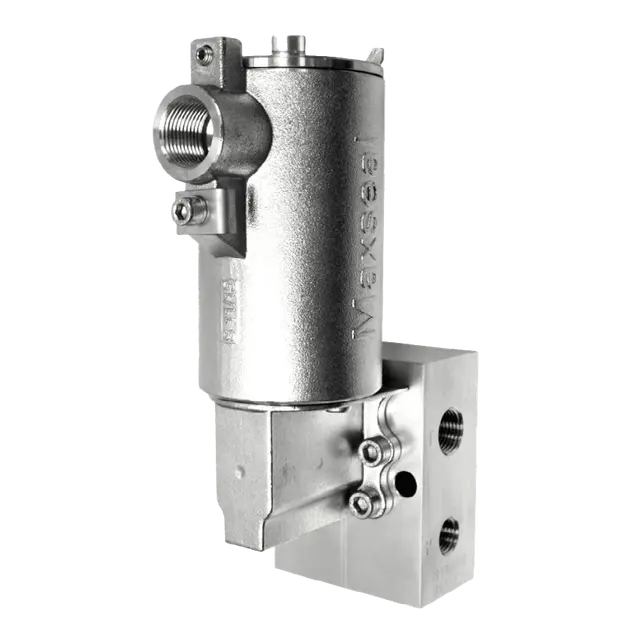

Maxseal Solenoid Valve ICO3S – The Maxseal ICO3S Solenoid Valve (YX13AA1H2BS) is a direct-acting poppet valve designed for high-performance hydraulic and pneumatic applications in harsh or hazardous environments. It features a 3/2-way design and is constructed from 316L stainless steel for maximum durability.
Jual Solenoid Valve MAXSEAL ICO3S
Specifications
According to official documentation and technical listings, this specific configuration includes:
Model/Figure No.: YX13AA1H2BS.
Port Size: 1/4″ NPT end connections.
Valve Design: 3/2-way direct-acting poppet valve.
Voltage: 24V DC.
Body Material: 316L Stainless Steel.
Seal Material: Nitrile (NBR), rated for temperatures from -55°C to +90°C.
Operating Pressure: Standard range of 0 to 12 bar (0–174 psi).
Operation: Automatic (electromagnetically actuated).
Certifications: Often certified for hazardous areas (Ex d) and SIL 3/4 safety applications.
Performance
Durability: The 316L stainless steel construction makes it “exceptionally reliable” for upstream and downstream oil and gas solutions
Speed: Fluid Controls notes typical response times of less than 70ms for pull-in and less than 50ms for drop-out.
Reliability: It is designed for a service life of up to 1 million cycles or 20 years with proper maintenance.
