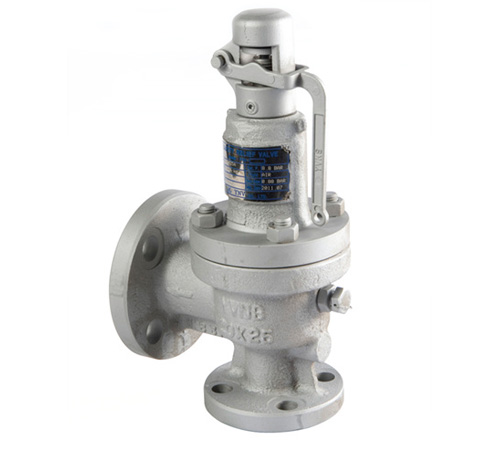

Safety Valve FSV-3F – The YNV FSV-3F is a high-performance full bore safety relief valve engineered by YNV Valve (Korea) to provide dependable overpressure protection across steam, compressed air, liquid, and oil applications. Designed to automatically open and discharge excess pressure when system pressure exceeds preset limits, the FSV-3F helps protect pressure vessels, boilers, piping systems, and industrial equipment from dangerous overpressure conditions
Manufactured with a cast steel body and stainless steel trim, this valve delivers excellent durability and corrosion resistance even in demanding industrial environments. It is available in both lever-operated and non-lever configurations with JIS or ANSI flanged connections for flexible installation. The FSV-3F supports wide operating conditions with high working pressures up to approximately 22–33 kgf/cm² (≈22–33 bar) and temperatures up to 250 °C, making it suitable for heavy-duty service.
YNV’s safety valve design incorporates tight sealing and reliable performance to ensure safety and stability in critical systems. With sizes ranging from DN15 to DN100 (½″ to 4″), the FSV-3F is an ideal choice for industrial steam, air, and fluid pressure protection
Safety Valve FSV-3F
Description
• Stellite welding is applied to the stainless steel disc and seat, providing excellent wear resistance, impact resistance, and long-term stable performance.
• Wear and damage are minimized even under repeated operation and high-load conditions, ensuring reliable valve performance.
• Optimally designed for use as Safety Valves and Safety Relief Valves in large-capacity steam boilers and various pressure vessels.
• Both Open Bonnet Type and Bellows Type configurations are available to accommodate various operating conditions.
• This product is officially certified by the Korea Occupational Safety and Health Agency (KOSHA).
• Complies with API Standard 527, strictly meeting international requirements for valve tightness and leakage performance
