Sensus Cold & Hot Water Meter – High-precision measuring instruments designed to measure the volume of cold clean water and industrial hot water. Engineered with robust,corrosion-resistant materials,offering reliable accuracy for industrial and commercial needs under PN 16 / PN 40 standards.

We supply a full range of Sensus Water Meters (MeiStream,PolluTherm,Cosmos,H4000,and larger DN sizes). Contact our engineering team for custom sizing,technical catalogs,or direct pricing inquiries.

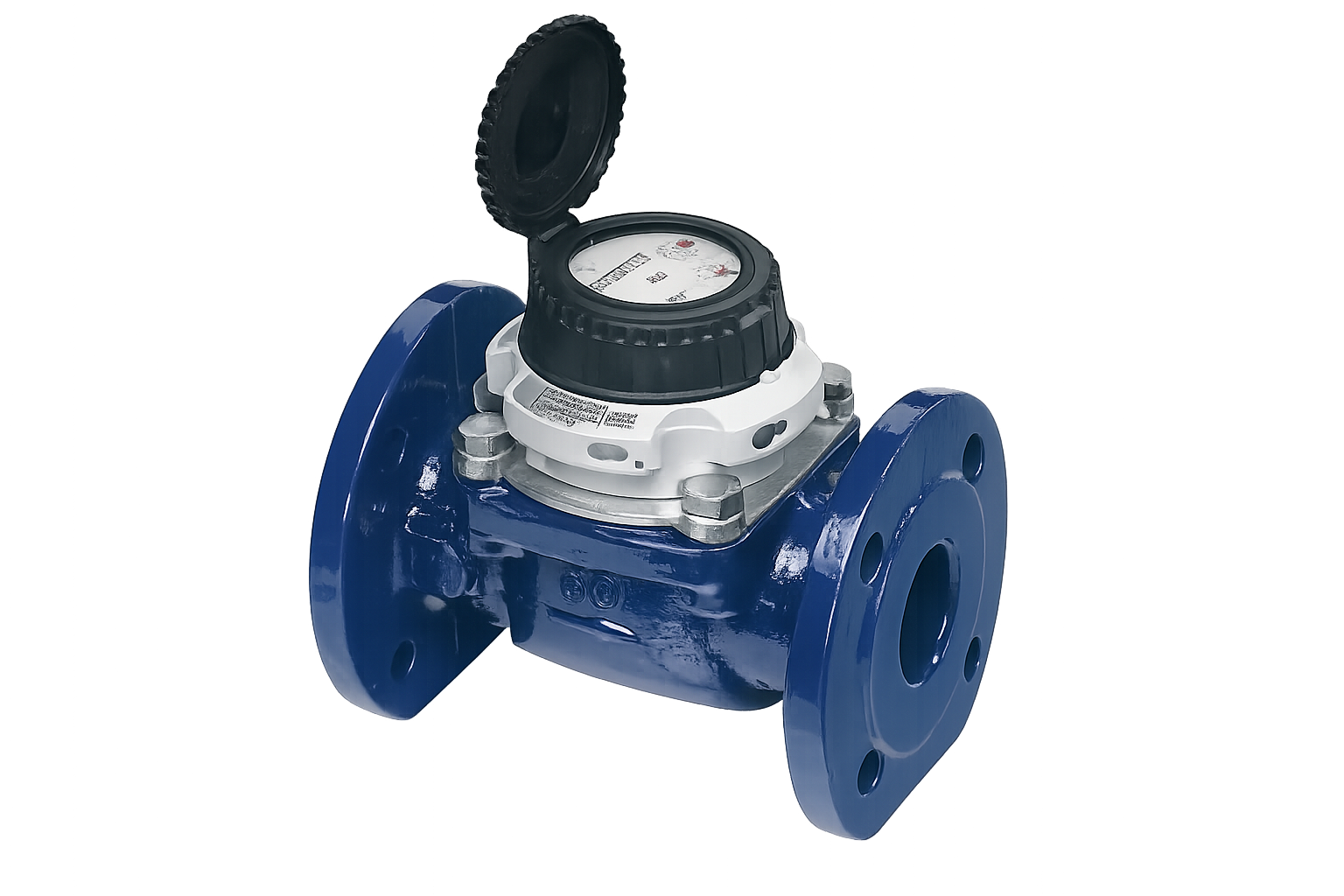

Contact Us for Other ModelsDN 40 | PN 16 | 50°C
| Nominal Size (DN) | DN 40 (1 1/2") |
|---|---|
| Working Pressure (PN) | 16 Bar |
| Max Temperature | 50°C (Cold Water) |
| Metering Type | Turbine / Woltman Body |
| Body Material | Cast Iron Coated Epoxy |
| Accuracy Class | ISO 4064 Class B |
DN 50 | PN 16 | 50°C
| Nominal Size (DN) | DN 50 (2") |
|---|---|
| Working Pressure (PN) | 16 Bar |
| Max Temperature | 50°C (Cold Water) |
| Nominal Flowrate (Qn) | 15 m³/h |
| Max Flowrate (Qmax) | 30 m³/h |
| Body Material | Cast Iron Coated Epoxy |
DN 65 | PN 16 | 50°C
| Nominal Size (DN) | DN 65 (2 1/2") |
|---|---|
| Working Pressure (PN) | 16 Bar |
| Max Temperature | 50°C (Cold Water) |
| Nominal Flowrate (Qn) | 25 m³/h |
| Max Flowrate (Qmax) | 60 m³/h |
| Flange Connection | Standard DIN / EN 1092 |

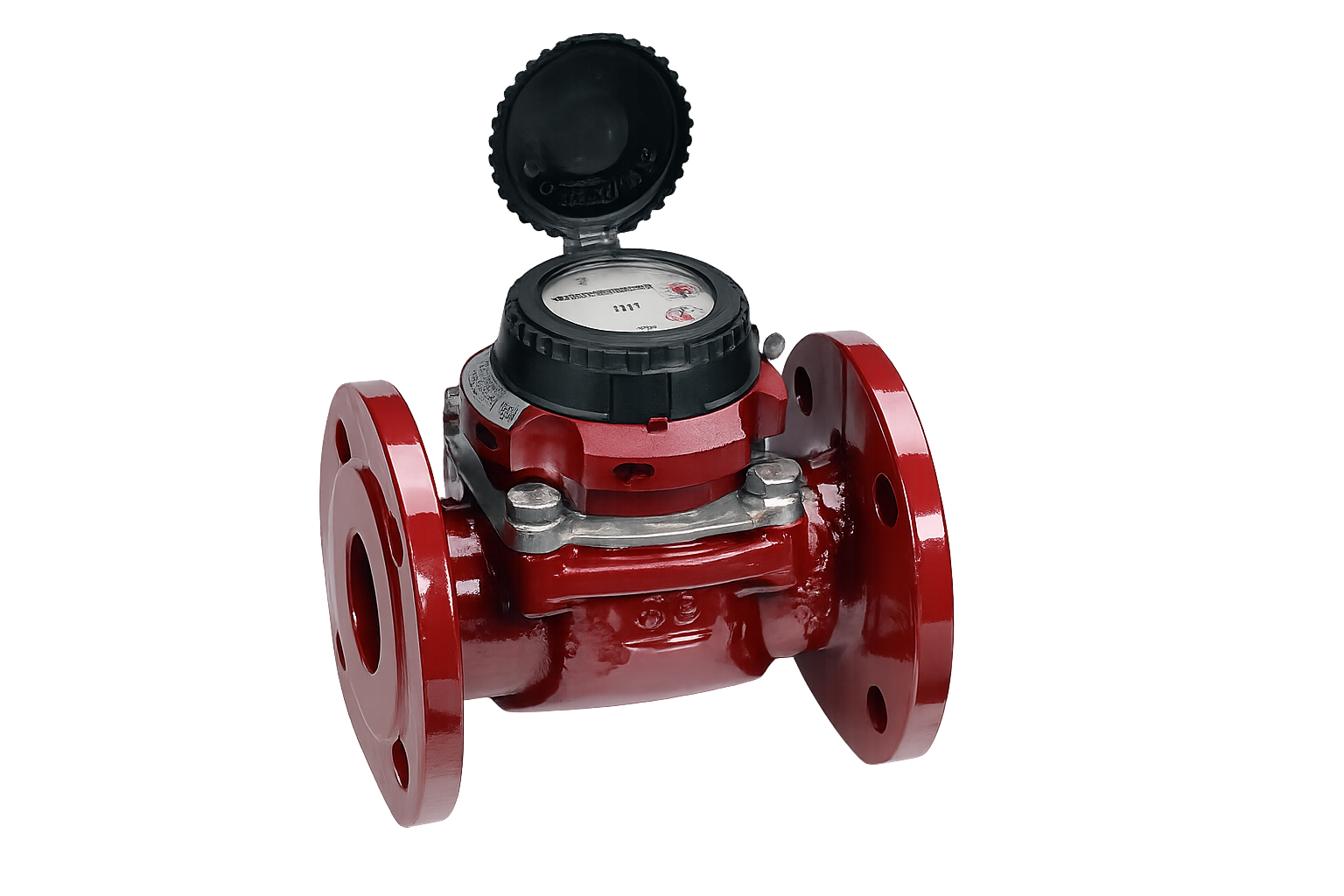

DN 50 | PN 16 | 130°C
| Nominal Size (DN) | DN 50 (2") |
|---|---|
| Working Pressure (PN) | 16 Bar |
| Max Temperature | 130°C (Hot Water / Boiler) |
| Register Type | Copper / Glass IP68 Hermetically Sealed |
| Body Material | Spheroidal Graphite Cast Iron |
| Application | Hot Water Systems & Boiler Lines |
DN 80 | PN 16 | 130°C
| Nominal Size (DN) | DN 80 (3") |
|---|---|
| Working Pressure (PN) | 16 Bar |
| Max Temperature | 130°C (Hot Water) |
| Nominal Flowrate (Qn) | 40 m³/h |
| Max Flowrate (Qmax) | 120 m³/h |
| Flange Connection | DIN PN 16 Flanged |
DN 65 | PN 40 | High Pressure
| Nominal Size (DN) | DN 65 (2 1/2") |
|---|---|
| Working Pressure (PN) | PN 40 (High Pressure 40 Bar) |
| Max Temperature | 130°C - 150°C |
| Rotor Mechanism | Vertical Turbine Wheel |
| Body Material | Cast Steel / Heavy Duty Spec |
| Special Application | Power Plants & Heavy Industry |
