VYC Valve Products

VYC Valve indonesia

VYC Valve

VYC Valve,safety valve works as an automatic pressure releasing regulator activated by the static pressure existing at the entrance to the valve and is characterized by its ability to open instantly and totally. Design in accordance with “International Standard ISO 4126-1 Safety Valves.

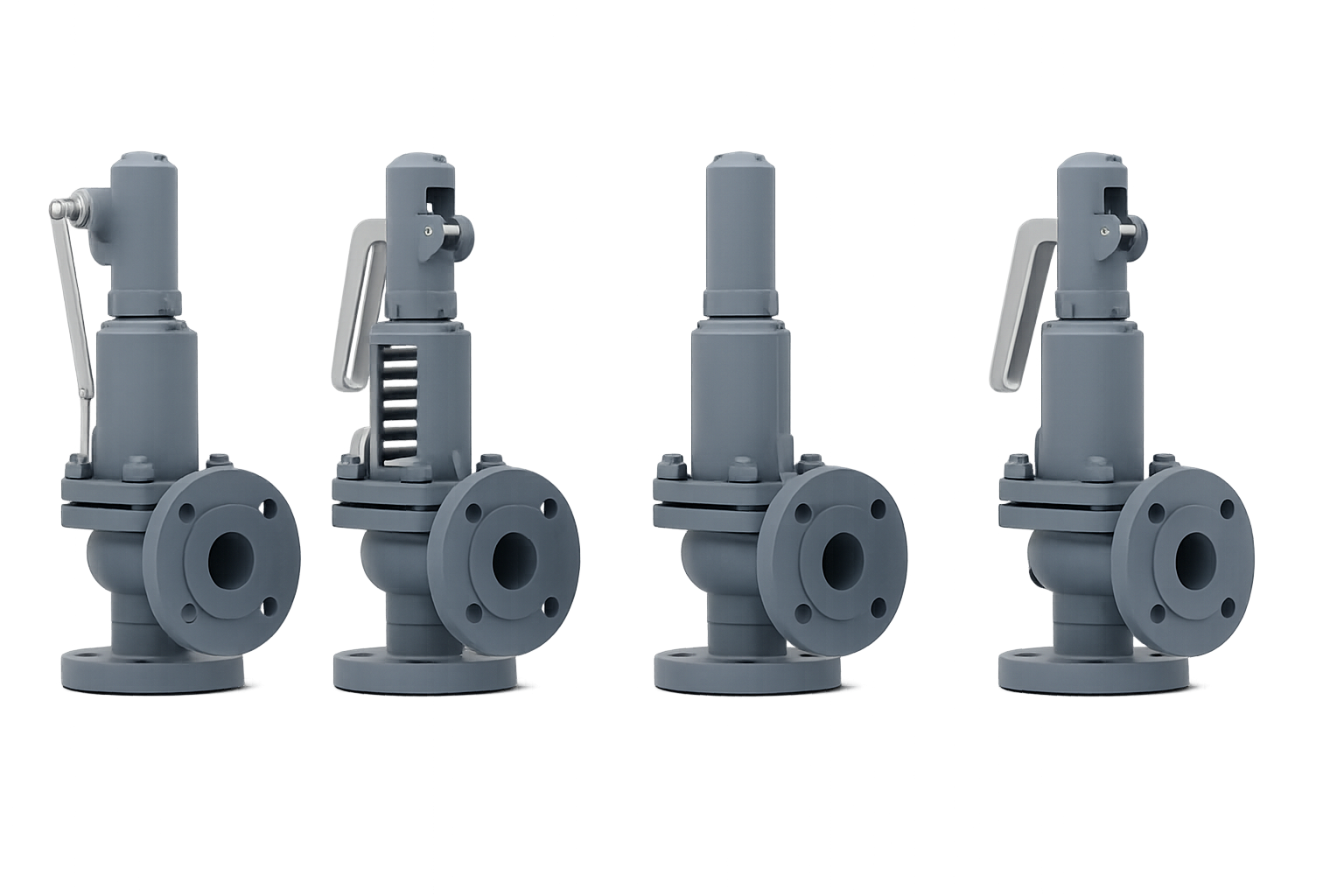

VYC General Valve

VYC Valve Series

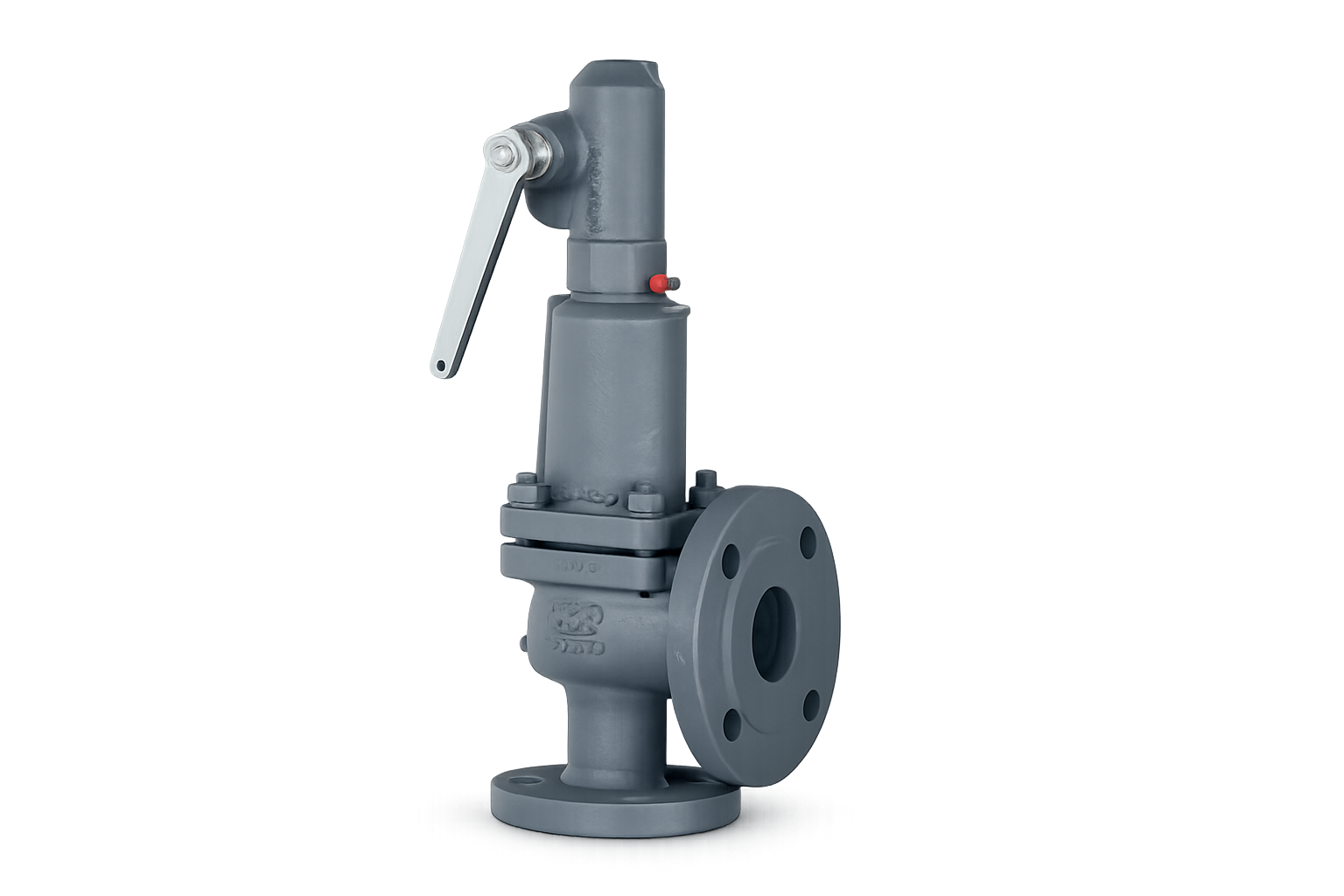

Full Lift Valve

Full Lift Safety Valve

Specifications

Body MaterialCast Steel / SS316
Inlet SizeDN 15 - DN 150
Set Pressure0.5 to 40 Bar
Discharge Cap.High (Full Lift)

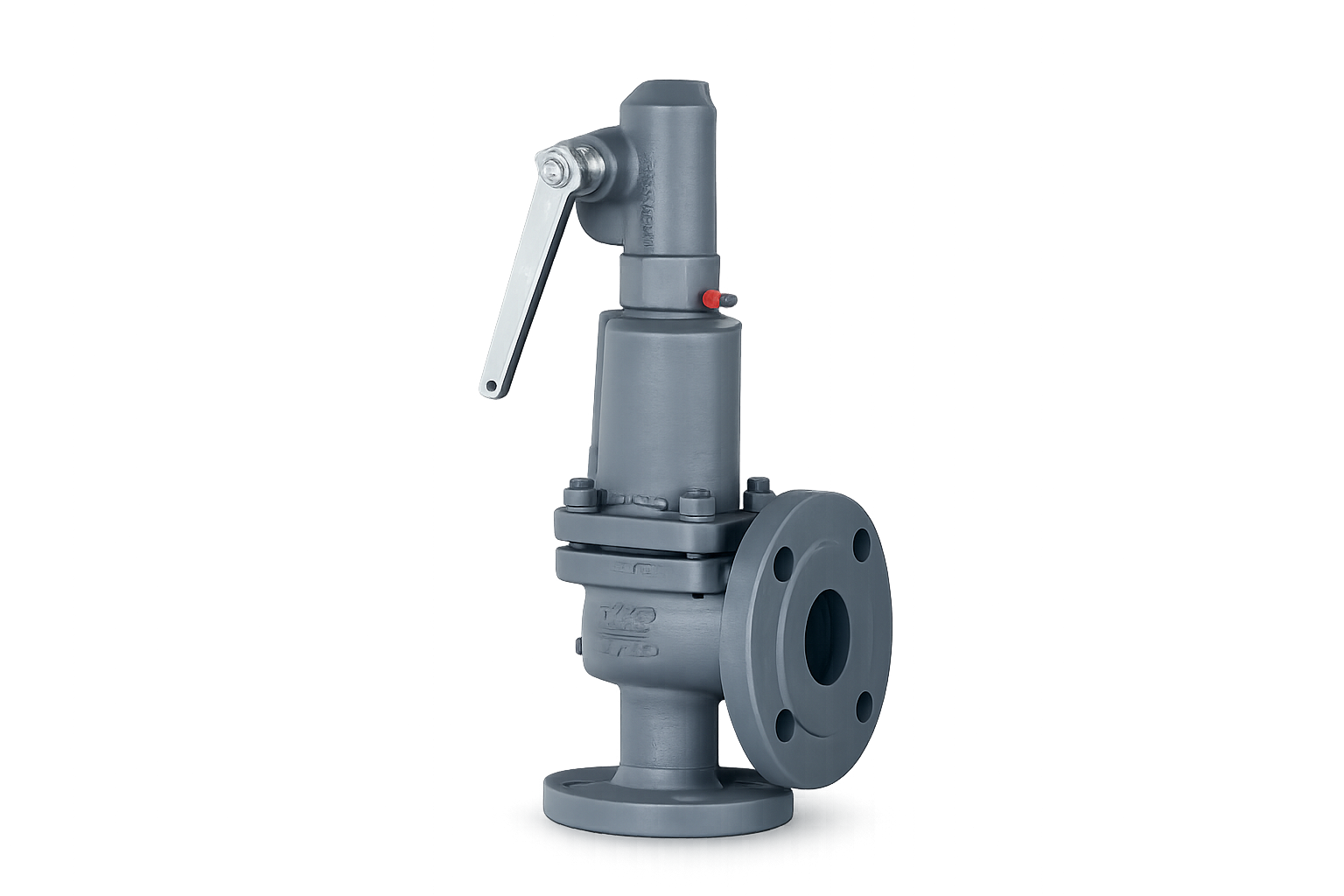

Normal Safety Valve

VYC Normal Safety Valve

Specifications

Body MaterialBronze / Cast Iron
Inlet SizeDN 20 - DN 200
Set PressureUp to 25 Bar
ConnectionFlanged / Threaded

Proportional Valve

Proportional Safety Valve

Specifications

Body MaterialStainless Steel 316L
Inlet SizeDN 15 - DN 100
CharacteristicsProportional Lift
Working Temp.-60°C to 400°C

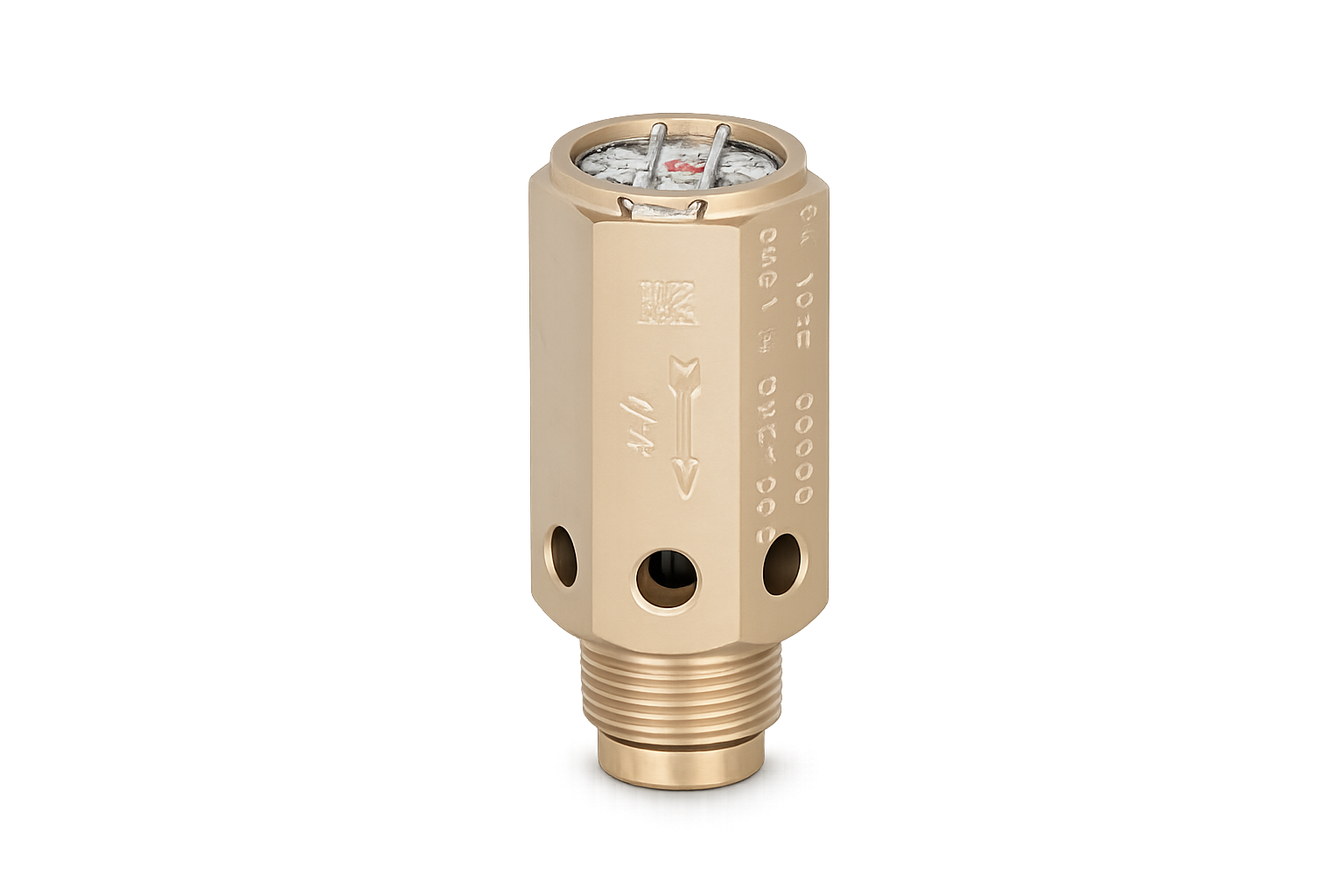

Vacuum Breaker Valve

Vacuum Breaker Valve

Specifications

Body MaterialBrass / SS316
Inlet Size1/2" to 2" Inch
Set Vacuum-0.05 to -.9 bar
FunctionVacuum Collapse Prev.
