Distributor Sensus Hot Water Meter WP-Dynamic DN 50 PN 16 (130°C) | Industrial Water Meters

Sensus Meter Series 🔥 Up to 130°C Hot Water ⚡ PN 16 Operating Pressure

Sensus Hot Water Meter
WP-Dynamic DN 50 PN 16

Engineered for high-temperature industrial environments, the Sensus WP-Dynamic DN 50 PN 16 is a heavy-duty Woltman parallel turbine water meter designed to deliver precise measurement for extreme liquid temperatures up to 130°C and operating pressures up to 16 Bar.

Ideal for boiler systems, district heating networks, condensate recovery, and heavy industrial processing lines requiring long-term calibration stability and robust durability under severe service conditions.

Size DN 50 (2")

Rating PN 16 Bar

Max Temp 130°C

Type Woltman

Request Quote via WhatsApp View Technical Specifications

Industrial Grade 100% Genuine

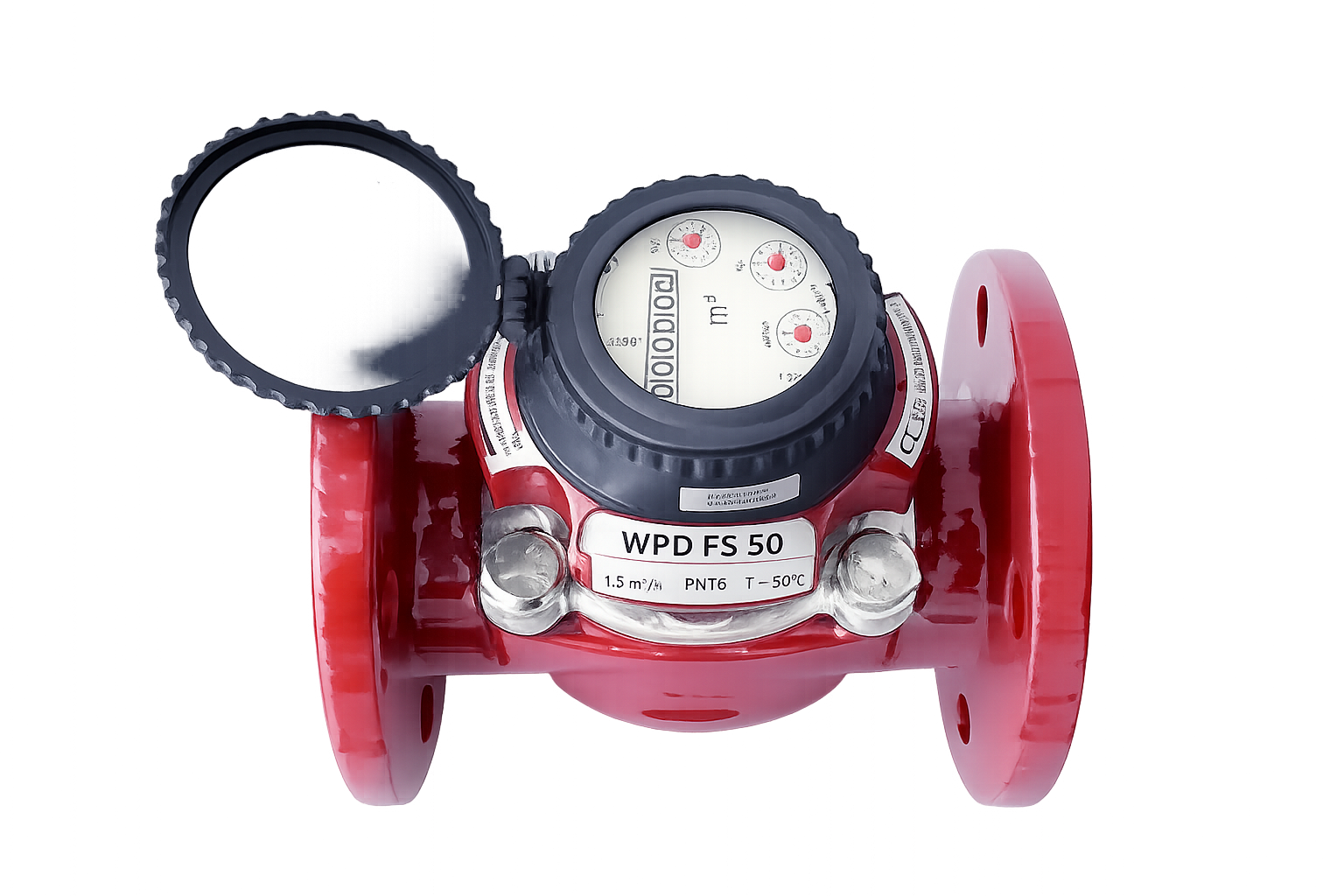

Sensus Hot Water Meter WP-Dynamic DN 50 PN 16 130°C

Sensus WP-Dynamic DN 50

Hot Water Turbine Meter

Technical Specifications

Standard operating parameters and detailed configuration for Sensus WP-Dynamic DN 50 PN 16.

DIN / EN Standards Compliant

Parameter	Standard Configuration & Values
Brand & Product Series	Sensus — WP-Dynamic Series (Woltman Parallel Hot Water Meter)
Nominal Diameter (Size)	DN 50 (2 Inches)
Meter Mechanism Type	Axial Woltman Turbine / Parallel Flow Pattern
Pressure Rating (PN)	PN 16 Bar (1.6 MPa / 232 PSI)
Maximum Water Temperature	Up to 130°C (266°F)
Applicable Media	High-Temperature Water, Boiler Feedwater, Steam Condensate, District Heating Systems
Body Material Construction	Ductile Iron / Cast Steel with High-Grade Heat & Corrosion Resistant Coating
Flange Connections	Flanged Standard EN 1092-2 / DIN PN 16
Register Counter Assembly	Hermetically Sealed Dry Dial Counter (IP68 Water & Dust Protection)
Pulse Output Compatibility	Optional Pulse Transmitter Ready (Compatible with HRI / OPTO Sensors)

Explore Related Products

Other Products

Discover other premium industrial flow meters and measurement solutions from Sensus series.

Cold Water DN 50 - DN 300

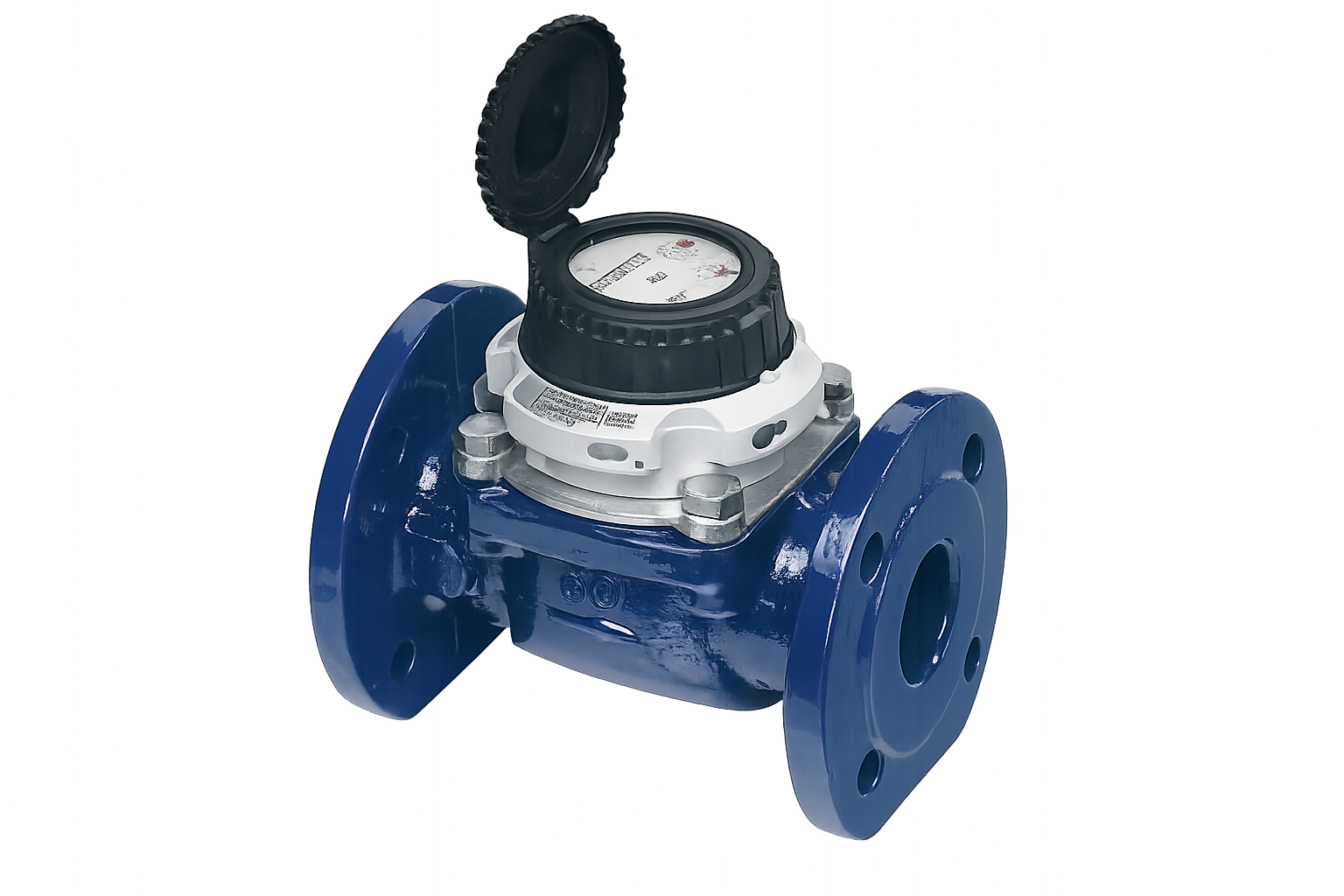

Sensus WP-Dynamic Cold Water Meter

Sensus WP-Dynamic Cold

High precision Woltman meter for cold potable water up to 50°C. Standard PN 16 rating.

Up to 50°C View Details

High Flow DN 40 - DN 300

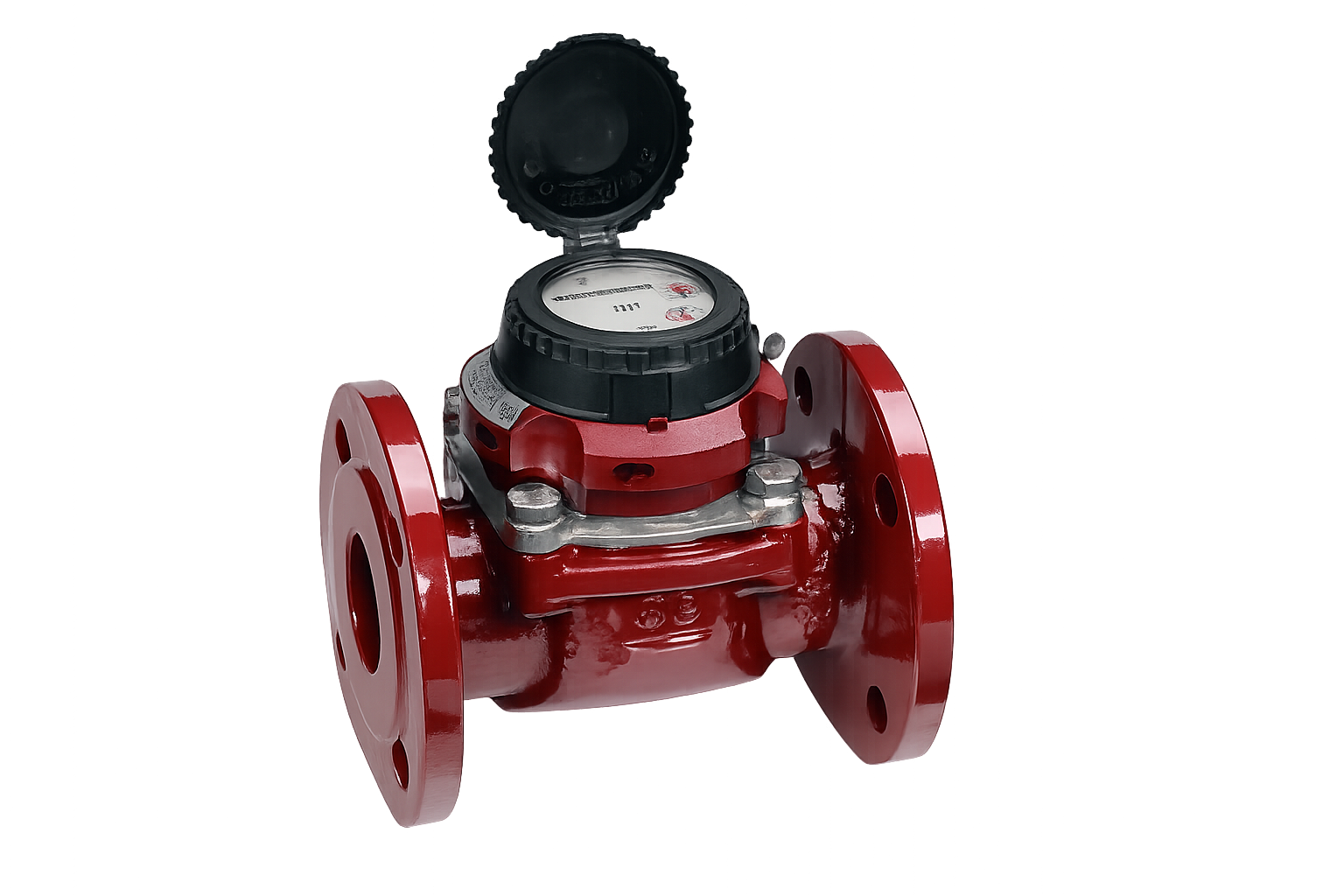

Sensus MeiStream Industrial Water Meter

Sensus MeiStream Industrial

Industrial class bulk meter with high overload capability and low head loss performance.

PN 16 / PN 40 View Details

Heavy Duty DN 50 - DN 200

Sensus WP-QF DN 80 PN 40 Meter

Sensus WP-QF DN 80 PN 40

High temperature and ultra-high pressure rating PN 40 for demanding steam condensate lines.

PN 40 / 130°C View Details

Smart Ready DN 40 - DN 150

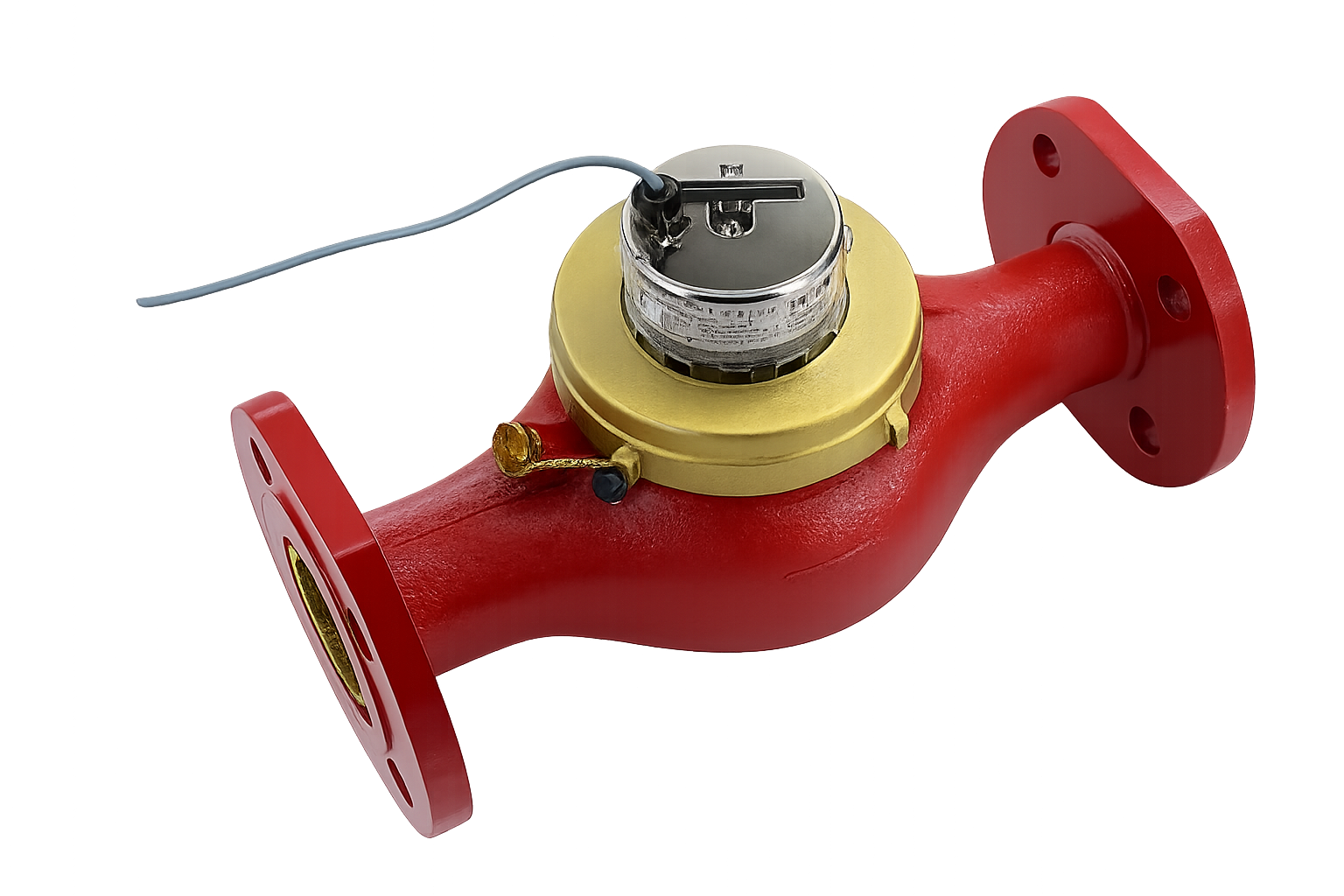

Sensus MeiStream Plus Smart Water Meter
